Backlights · 16 models · from $109.00

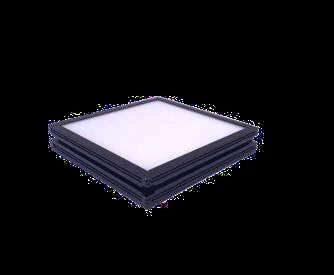

surface light source, no opening
The surface light source, no opening is a range of 16 backlights from LumaSpec Vision, from $109.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 99 x 99 mm, 117 x 130 mm, 119 x 99 mm, 149 x 149 mm, 149 x 99 mm, 199 x 149 mm, 199 x 199 mm, 199 x 99 mm, 299 x 199 mm, 299 x 299 mm, 299 x 98.5 mm, 349 x 349 mm, 399 x 149 mm, 399 x 299 mm, 498.5 x 248.5 mm, 511 x 248.5 mm |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Type | Standard |
| Voltage | 24 V |
Features
- Large-area uniform light emission
- High-array LED arrangement for high-brightness planar lighting
- Mainly used for perspective contour imaging and large-format uniform illumination
- Size can be customized according to different needs
- Diffuser plate in an aluminium frame with M3 nut placement groove (groove depth 4.5 mm)
Typical uses
- Various size measurements, shape inspection of transparent objects
- Shape inspection of electronic components and ICs
- Edge positioning
- Copper wire detection
All 16 models in the surface light source, no opening
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FL100100F | 99 x 99 mm | 8.28 W | $109.00 | 19 in stock | View | |
| LS-FL100120F | 119 x 99 mm | 12 W | $119.00 | 19 in stock | View | |
| LS-FL100150F | 149 x 99 mm | 14 W | $129.00 | 19 in stock | View | |
| LS-FL117130F | 117 x 130 mm | 17.5 W | $129.00 | 22 in stock | View | |
| LS-FL100200F | 199 x 99 mm | 16.56 W | $149.00 | 20 in stock | View | |
| LS-FL150150F | 149 x 149 mm | 18.63 W | $159.00 | 18 in stock | View | |
| LS-FL100300F | 299 x 98.5 mm | 19.4 W | $179.00 | 25 in stock | View | |
| LS-FL150200F | 199 x 149 mm | 20.16 W | $179.00 | 22 in stock | View | |
| LS-FL200200F | 199 x 199 mm | 26.88 W | $219.00 | 24 in stock | View | |
| LS-FL150400F | 399 x 149 mm | 25.3 W | $289.00 | 20 in stock | View | |
| LS-FL200300F | 299 x 199 mm | 39 W | $289.00 | 18 in stock | View | |
| LS-FL300300F | 299 x 299 mm | 48.38 W | $399.00 | 23 in stock | View | |
| LS-FL300400F | 399 x 299 mm | 64.51 W | $499.00 | 19 in stock | View | |
| LS-FL350350F | 349 x 349 mm | 56.2 W | $509.00 | 20 in stock | View | |
| LS-FL250500F | 498.5 x 248.5 mm | 85.8 W | $519.00 | 22 in stock | View | |
| LS-FL250510F | 511 x 248.5 mm | 88.92 W | $529.00 | 19 in stock | View |
