Backlights · 24 models · from $79.00

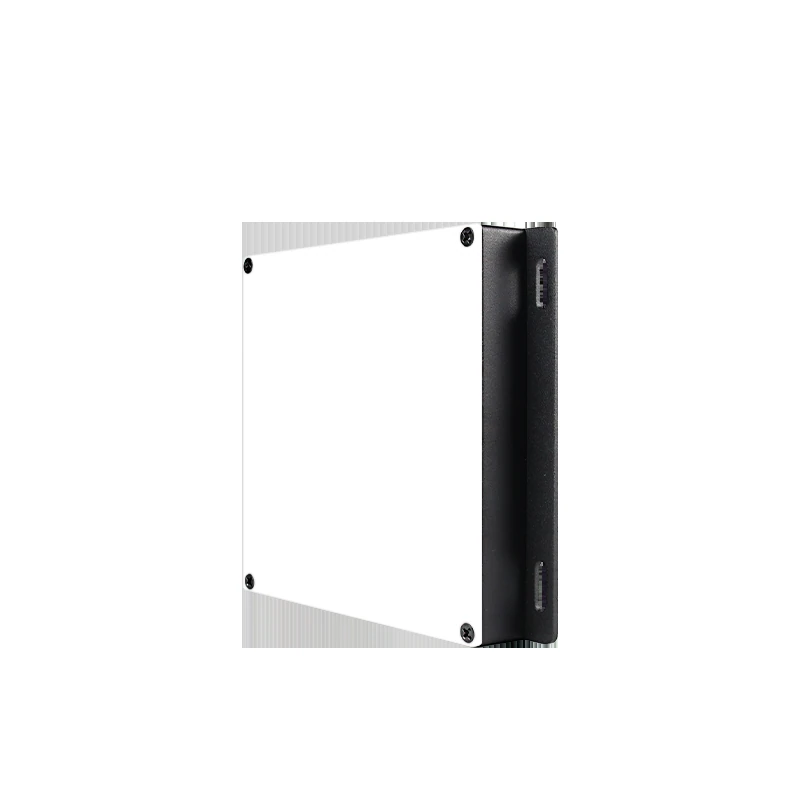

Collimated backlight (3FLP series)
The Collimated backlight (3FLP series) is a range of 24 backlights from LumaSpec Vision, from $79.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 29 x 29 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 180 x 180 mm, 200 x 100 mm, 200 x 150 mm, 200 x 200 mm, 250 x 200 mm, 250 x 250 mm, 300 x 150 mm and 8 more |
|---|---|
| Colour | Red, Blue, White |
| Type | Collimated |
| Voltage | 24 V |
| Connector | SM3 |
Features
- Collimated (parallel) backlight for sharp edges in measurement
- Four-sided M3 nut grooves and bottom side installation
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- SM3 (1.3 pin) interface
- Luminous size:100mm*100mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for defect detection, size measurement, complex surface detection, positioning and alignment of transparent/translucent materials.
Typical uses
- Metal cylinder profile measurement
- Glass bottle diameter measurement
- Large-area circuit board component detection and identification
- Dimension measurement of metal parts
- Wafer surface defect detection
All 24 models in the Collimated backlight (3FLP series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3FLP2929 | 29 x 29 mm | 1.7 W | $79.00 | 9 in stock | View | |
| LS-3FLP5050 | 50 x 50 mm | 2.5 W | $89.00 | 15 in stock | View | |
| LS-3FLP6060 | 60 x 60 mm | 3.8 W | $89.00 | 10 in stock | View | |
| LS-3FLP7070 | 70 x 70 mm | 4.8 W | $99.00 | 10 in stock | View | |
| LS-3FLP8080 | 80 x 80 mm | 6.2 W | $99.00 | 10 in stock | View | |
| LS-3FLP9090 | 90 x 90 mm | 6.9 W | $109.00 | 9 in stock | View | |
| LS-3FLP100100 | 100 x 100 mm | 10 W | $109.00 | 14 in stock | View | |
| LS-3FLP120120 | 120 x 120 mm | 15.4 W | $129.00 | 8 in stock | View | |
| LS-3FLP200100 | 200 x 100 mm | 15.4 W | $149.00 | 8 in stock | View | |
| LS-3FLP150150 | 150 x 150 mm | 22.5 W | $159.00 | 12 in stock | View | |
| LS-3FLP180180 | 180 x 180 mm | 21.1 W | $189.00 | 11 in stock | View | |
| LS-3FLP200150 | 200 x 150 mm | 23 W | $189.00 | 11 in stock | View | |
| LS-3FLP200200 | 200 x 200 mm | 30.7 W | $219.00 | 11 in stock | View | |
| LS-3FLP300150 | 300 x 150 mm | 34.6 W | $239.00 | 9 in stock | View | |
| LS-3FLP250200 | 250 x 200 mm | 38.4 W | $259.00 | 11 in stock | View | |
| LS-3FLP300200 | 300 x 200 mm | 46.1 W | $289.00 | 10 in stock | View | |
| LS-3FLP250250 | 250 x 250 mm | 48 W | $299.00 | 10 in stock | View | |
| LS-3FLP400200 | 400 x 200 mm | 52.2 W | $359.00 | 9 in stock | View | |
| LS-3FLP350250 | 350 x 250 mm | 57.1 W | $389.00 | 11 in stock | View | |
| LS-3FLP300300 | 300 x 300 mm | 58.8 W | $399.00 | 12 in stock | View | |
| LS-3FLP400300 | 400 x 300 mm | 78.3 W | $509.00 | 12 in stock | View | |
| LS-3FLP350350 | 350 x 350 mm | 80 W | $519.00 | 9 in stock | View | |
| LS-3FLP450300 | 450 x 300 mm | 88.1 W | $559.00 | 14 in stock | View | |
| LS-3FLP400400 | 400 x 400 mm | 104.4 W | $649.00 | 6 in stock | View |
