Backlights · 6 models · from $149.00

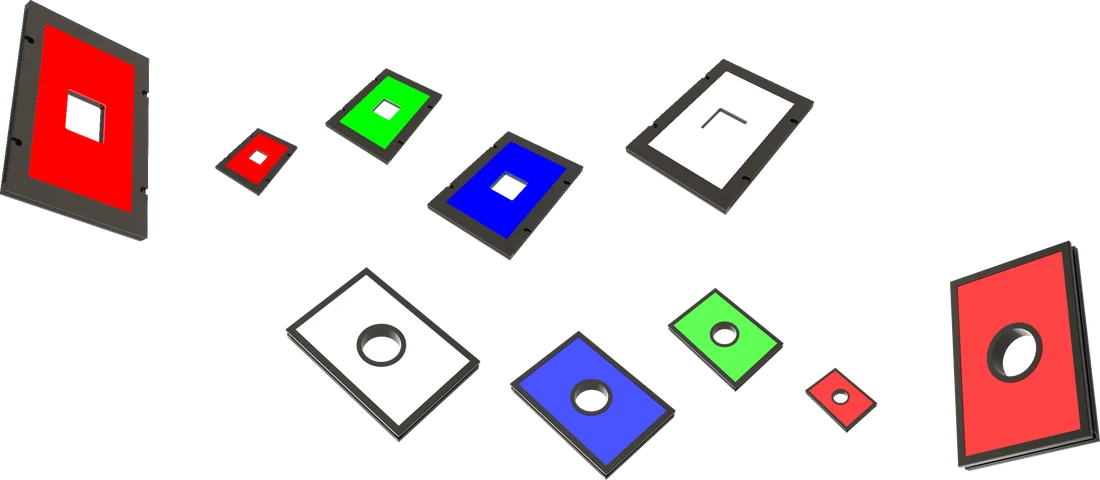

Flank Back Light with Hole (FCK series)
The Flank Back Light with Hole (FCK series) is a range of 6 backlights from LumaSpec Vision, from $149.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 150 x 100 mm, 200 x 200 mm, 250 x 200 mm, 350 x 350 mm, 400 x 300 mm, 600 x 400 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | With centre hole |
| Voltage | 24 V |
Features
- Ultra-thin design, with customizable hole size, shape, dimension and position.
- Achieves uniform illumination over a large area.
- High-precision, large-area product size measurement using parallel backlighting.
Typical uses
- Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
- PCB board fiducial mark positioning
- Keyboard character inspection
- Electronic product QR code detection
- Chip quantity inspection
All 6 models in the Flank Back Light with Hole (FCK series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FCK-150X100-T40 | 150 x 100 mm | 11 W | $149.00 | 12 in stock | View | |
| LS-FCK-200X200-T40 | 200 x 200 mm | 17.5 W | $249.00 | 16 in stock | View | |
| LS-FCK-250X200-T45 | 250 x 200 mm | 20 W | $289.00 | 13 in stock | View | |
| LS-FCK-400X300-D50 | 400 x 300 mm | 32 W | $579.00 | 12 in stock | View | |
| LS-FCK-350X350-T40 | 350 x 350 mm | 28 W | $589.00 | 14 in stock | View | |
| LS-FCK-600X400-D50 | 600 x 400 mm | 54 W | $1,069.00 | 12 in stock | View |
