Backlights · 27 models · from $79.00

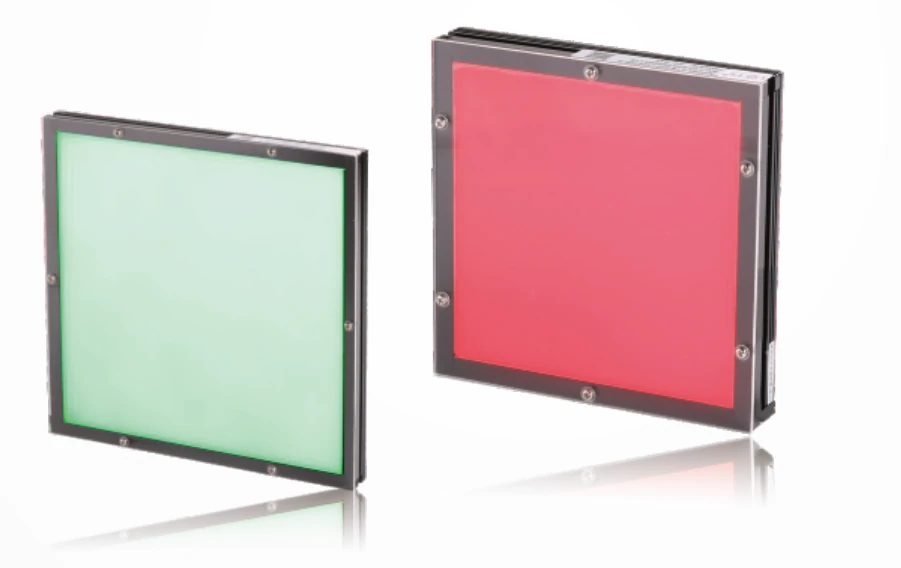

Collimated back light (2PFT/3PFT)
The Collimated back light (2PFT/3PFT) is a range of 27 backlights from LumaSpec Vision, from $79.00. It comes in 27 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 60 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 110 x 110 mm, 110 x 60 mm, 120 x 120 mm, 126 x 86 mm, 130 x 130 mm, 150 x 100 mm, 150 x 150 mm, 157 x 56 mm and 11 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Collimated |
| Voltage | 24 V |
Features
- Special parallel film design, simple structure, high effect
- Compact design, efficient eco-friendly material
- Imported ultrathin paste LED, high luminance, high uniformity
- Precision-moulded shell, small batch-to-batch difference
- Directional: the inspected edge must be parallel to the arrow on the light; otherwise it behaves like a general back light
- Double-deck parallel film optional
Typical uses
- Metal column contour measurement
- Glass bottle diameter measurement
- Ceramic column diameter measurement
- Screw thread contour measurement
- Imaging example: screw contour inspection (LS-2PFT5050-W)
All 27 models in the Collimated back light (2PFT/3PFT)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2PFT3030 | 30 x 30 mm | 1.2 W | $79.00 | 13 in stock | View | |
| LS-2PFT5050 | 50 x 50 mm | 3.6 W | $89.00 | 16 in stock | View | |
| LS-2PFT6060 | 60 x 60 mm | 4.8 W | $89.00 | 16 in stock | View | |
| LS-2PFT7070 | 70 x 70 mm | 5.8 W | $99.00 | 14 in stock | View | |
| LS-2PFT8080 | 80 x 80 mm | 7.2 W | $99.00 | 11 in stock | View | |
| LS-2PFT8060 | 80 x 60 mm | 7.2 W | $99.00 | 19 in stock | View | |
| LS-2PFT11060 | 110 x 60 mm | 7.2 W | $99.00 | 14 in stock | View | |
| LS-2PFT9090 | 90 x 90 mm | 9.6 W | $109.00 | 17 in stock | View | |
| LS-2PFT100100 | 100 x 100 mm | 11.5 W | $109.00 | 10 in stock | View | |
| LS-2PFT15756 | 157 x 56 mm | 8.6 W | $109.00 | 12 in stock | View | |
| LS-2PFT110110 | 110 x 110 mm | 12.9 W | $119.00 | 13 in stock | View | |
| LS-2PFT12686 | 126 x 86 mm | 11.7 W | $119.00 | 15 in stock | View | |
| LS-2PFT16065 | 160 x 65 mm | 10.8 W | $119.00 | 18 in stock | View | |
| LS-2PFT120120 | 120 x 120 mm | 14.4 W | $129.00 | 14 in stock | View | |
| LS-2PFT150100 | 150 x 100 mm | 14.4 W | $129.00 | 12 in stock | View | |
| LS-2PFT130130 | 130 x 130 mm | 16.8 W | $139.00 | 14 in stock | View | |
| LS-2PFT180100 | 180 x 100 mm | 16.8 W | $139.00 | 17 in stock | View | |
| LS-2PFT150150 | 150 x 150 mm | 19.2 W | $159.00 | 11 in stock | View | |
| LS-2PFT160160 | 160 x 160 mm | 23 W | $169.00 | 9 in stock | View | |
| LS-3PFT200140 | 200 x 140 mm | 25.2 W | $179.00 | 14 in stock | View | |
| LS-2PFT180180 | 180 x 180 mm | 28.1 W | $189.00 | 16 in stock | View | |
| LS-3PFT200200 | 200 x 200 mm | 33.6 W | $219.00 | 16 in stock | View | |
| LS-3PFT220220 | 220 x 220 mm | 42.2 W | $249.00 | 16 in stock | View | |
| LS-3PFT300164 | 300 x 164 mm | 42 W | $249.00 | 11 in stock | View | |
| LS-3PFT300200 | 300 x 200 mm | 50.4 W | $289.00 | 12 in stock | View | |
| LS-3PFT250250 | 250 x 250 mm | 50.4 W | $299.00 | 12 in stock | View | |
| LS-3PFT340260 | 340 x 260 mm | 78 W | $389.00 | 15 in stock | View |
