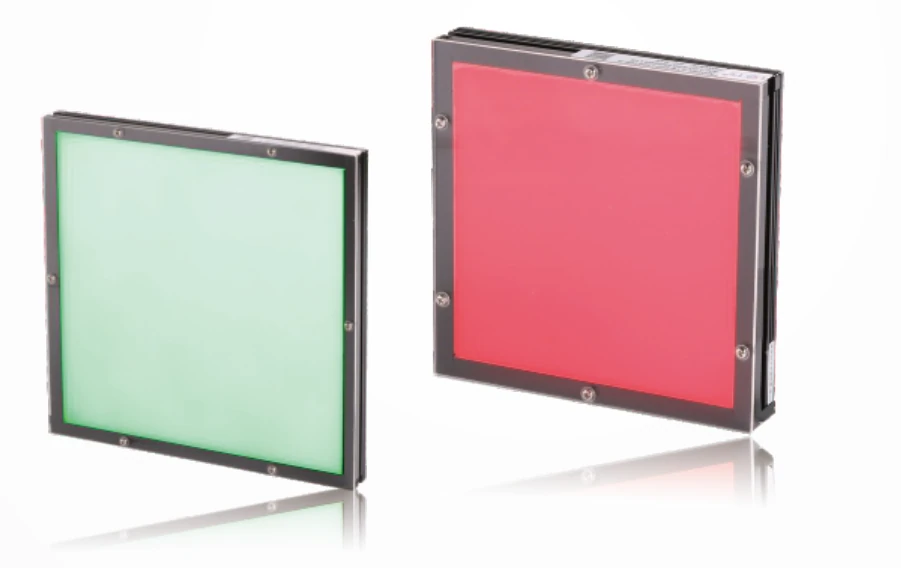

70 x 70 mm Collimated back light (2PFT/3PFT) (LS-2PFT7070)

Name: 70 x 70 mm Collimated back light (2PFT/3PFT) (LS-2PFT7070)
Brand: LumaSpec Vision
SKU: LS-2PFT7070
Price: 99.00 USD
Availability: InStock

Model LS-2PFT7070

Back light with a special parallel film design: simple structure, high effect. Compared with a normal back light it has lower luminance but less virtual border and higher measuring precision.

Datasheet (PDF) - LS-2PFT7070

Features

Special parallel film design, simple structure, high effect
Compact design, efficient eco-friendly material
Imported ultrathin paste LED, high luminance, high uniformity
Precision-moulded shell, small batch-to-batch difference
Directional: the inspected edge must be parallel to the arrow on the light; otherwise it behaves like a general back light
Double-deck parallel film optional

Specifications

Model	LS-2PFT7070
Voltage	24 V
Adapted controller	Analog controller, digital controller, high power controller
Customizable	viewport, length and width, multi-area control, colour and colour temperature, cable length, installation method
Cable (mm)	500 (drawings)
Option	Double-deck parallel film
Caution	The parallel film is a consumable; in high temperature it can deform or change colour. Mind heat transfer so it stays below the film's heat-resistance temperature.
Min. emitting area	30mm x 30mm
Max. emitting area	340mm x 260mm
Recommended working distance	1~100mm
FOV	1~280mm
Colours (overview)	red / green / blue / white
Colour temperature of white	6600K
Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Life span	50000 h (to 50% of factory-default luminance)
Extension cable options	PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Custom wavelengths	UV & IR light can be customized as required
Power, R (W)	3.8
Power, G/B/W (W)	5.8
Weight (g)	172
Emitting surface (mm)	70 x 70
Dimension drawing	2
Common	Y

Applications

Metal column contour measurement
Glass bottle diameter measurement
Ceramic column diameter measurement
Screw thread contour measurement
Imaging example: screw contour inspection (LS-2PFT5050-W)

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers Lenses Selection guide

Other sizes in the Collimated back light (2PFT/3PFT) series

Model	Size	Power	Price	Availability
LS-2PFT3030	30 x 30 mm	1.2 W	$79.00	13 in stock	View
LS-2PFT5050	50 x 50 mm	3.6 W	$89.00	16 in stock	View
LS-2PFT6060	60 x 60 mm	4.8 W	$89.00	16 in stock	View
LS-2PFT8080	80 x 80 mm	7.2 W	$99.00	11 in stock	View
LS-2PFT8060	80 x 60 mm	7.2 W	$99.00	19 in stock	View
LS-2PFT11060	110 x 60 mm	7.2 W	$99.00	14 in stock	View
LS-2PFT9090	90 x 90 mm	9.6 W	$109.00	17 in stock	View
LS-2PFT100100	100 x 100 mm	11.5 W	$109.00	10 in stock	View
LS-2PFT15756	157 x 56 mm	8.6 W	$109.00	12 in stock	View
LS-2PFT110110	110 x 110 mm	12.9 W	$119.00	13 in stock	View
LS-2PFT12686	126 x 86 mm	11.7 W	$119.00	15 in stock	View
LS-2PFT16065	160 x 65 mm	10.8 W	$119.00	18 in stock	View
LS-2PFT120120	120 x 120 mm	14.4 W	$129.00	14 in stock	View
LS-2PFT150100	150 x 100 mm	14.4 W	$129.00	12 in stock	View
LS-2PFT130130	130 x 130 mm	16.8 W	$139.00	14 in stock	View
LS-2PFT180100	180 x 100 mm	16.8 W	$139.00	17 in stock	View
LS-2PFT150150	150 x 150 mm	19.2 W	$159.00	11 in stock	View
LS-2PFT160160	160 x 160 mm	23 W	$169.00	9 in stock	View
LS-3PFT200140	200 x 140 mm	25.2 W	$179.00	14 in stock	View
LS-2PFT180180	180 x 180 mm	28.1 W	$189.00	16 in stock	View
LS-3PFT200200	200 x 200 mm	33.6 W	$219.00	16 in stock	View
LS-3PFT220220	220 x 220 mm	42.2 W	$249.00	16 in stock	View
LS-3PFT300164	300 x 164 mm	42 W	$249.00	11 in stock	View
LS-3PFT300200	300 x 200 mm	50.4 W	$289.00	12 in stock	View

See all 27 models in the Collimated back light (2PFT/3PFT) series
