Backlights · 9 models · from $119.00

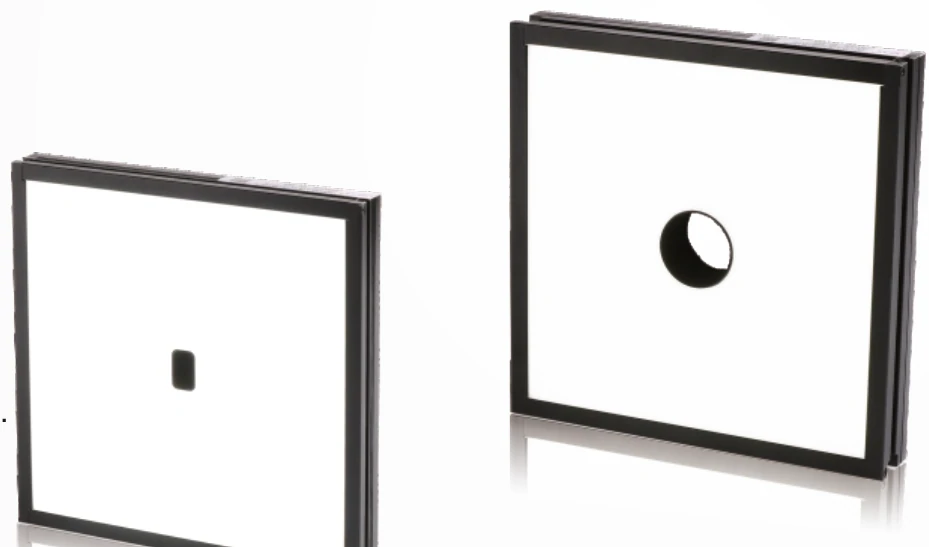

Ring back light with round hole (2FTR)
The Ring back light with round hole (2FTR) is a range of 9 backlights from LumaSpec Vision, from $119.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 110 x 110 mm, 141 x 141 mm, 150 x 150 mm, 180 x 180 mm, 220 x 220 mm, 250 x 210 mm, 300 x 200 mm, 500 x 400 mm, 600 x 450 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | With centre hole |
| Voltage | 24 V |
Features
- High-density LED distributed to the bottom of the light
- High uniformity, high luminance
- Diverse dimensions for various applications
- Through hole in the emitting area (round)
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
- Imaging example: dirty part inspection on a gauze mask (LS-2FTR300200-W)
All 9 models in the Ring back light with round hole (2FTR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FTR110110 | 110 x 110 mm | 9.9 W | $119.00 | 16 in stock | View | |
| LS-2FTR141141 | 141 x 141 mm | 18.2 W | $149.00 | 12 in stock | View | |
| LS-2FTR150150 | 150 x 150 mm | 20.2 W | $159.00 | 11 in stock | View | |
| LS-2FTR180180 | 180 x 180 mm | 27.6 W | $189.00 | 13 in stock | View | |
| LS-2FTR220220 | 220 x 220 mm | 31.7 W | $249.00 | 16 in stock | View | |
| LS-2FTR250210 | 250 x 210 mm | 45.6 W | $269.00 | 12 in stock | View | |
| LS-2FTR300200 | 300 x 200 mm | 59 W | $289.00 | 12 in stock | View | |
| LS-2FTR500400 | 500 x 400 mm | 147.8 W | $789.00 | 12 in stock | View | |
| LS-2FTR600450 | 600 x 450 mm | 226.6 W | $1,039.00 | 17 in stock | View |
