Backlights · 40 models · from $79.00

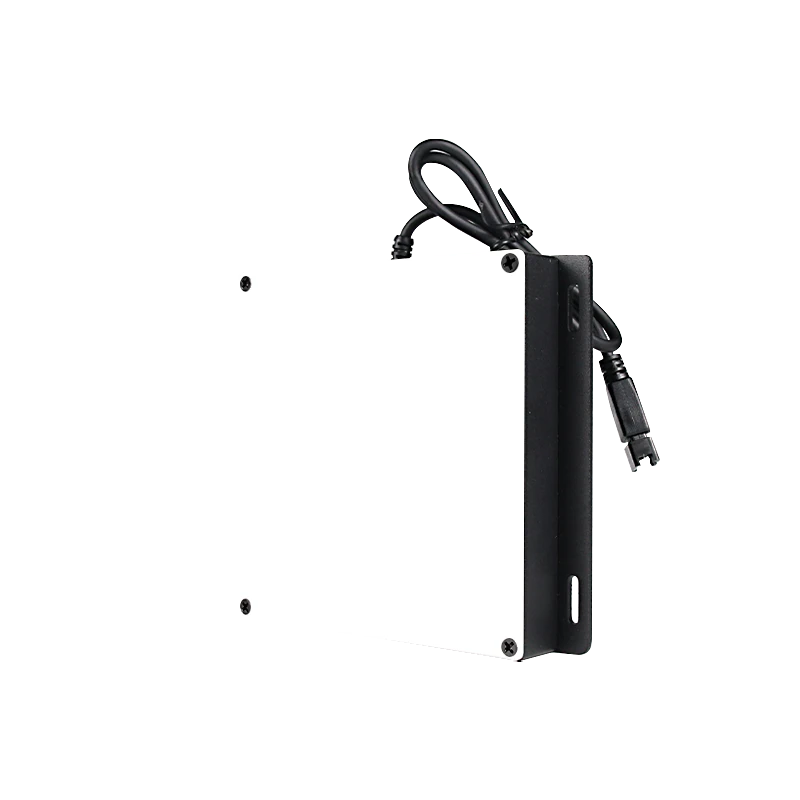

High power backlight (3FL series)
The High power backlight (3FL series) is a range of 40 backlights from LumaSpec Vision, from $79.00. It comes in 40 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 29 x 29 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 180 x 180 mm, 200 x 100 mm, 200 x 150 mm, 200 x 200 mm, 250 x 200 mm, 250 x 250 mm, 300 x 150 mm and 24 more |
|---|---|
| Colour | Red, Blue, White |
| Type | High power / strobe |
| Voltage | 24 V |
| Connector | SM3, WS20 4-pin |
Features
- High power backlight with SMD LEDs
- Installation by M3 nut slot or from the bottom side
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Interface: SM3 (1.3 pin) up to 450 x 300; 4-pin WS16 aviation connector 450 x 450 to 600 x 500; 4-pin WS20 aviation connector 600 x 600 to 1000 x 1000
- Luminous size: 29mm*29mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as contour detection, Edge breakage detection and Liquid height detection, etc.
Typical uses
- Contour dimension measurement
- Edge breakage detection
- Transparent object impurity detection
- Oral liquid height detection
- Contour detection (white background with contrasting black edges)
All 40 models in the High power backlight (3FL series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3FL2929 | 29 x 29 mm | 1.7 W | $79.00 | 8 in stock | View | |
| LS-3FL5050 | 50 x 50 mm | 2.5 W | $89.00 | 12 in stock | View | |
| LS-3FL6060 | 60 x 60 mm | 3.8 W | $89.00 | 10 in stock | View | |
| LS-3FL7070 | 70 x 70 mm | 4.8 W | $99.00 | 11 in stock | View | |
| LS-3FL8080 | 80 x 80 mm | 6.2 W | $99.00 | 12 in stock | View | |
| LS-3FL9090 | 90 x 90 mm | 6.9 W | $109.00 | 13 in stock | View | |
| LS-3FL100100 | 100 x 100 mm | 10 W | $109.00 | 13 in stock | View | |
| LS-3FL120120 | 120 x 120 mm | 15.4 W | $129.00 | 11 in stock | View | |
| LS-3FL200100 | 200 x 100 mm | 15.4 W | $149.00 | 7 in stock | View | |
| LS-3FL150150 | 150 x 150 mm | 22.5 W | $159.00 | 11 in stock | View | |
| LS-3FL180180 | 180 x 180 mm | 21.1 W | $189.00 | 10 in stock | View | |
| LS-3FL200150 | 200 x 150 mm | 23 W | $189.00 | 9 in stock | View | |
| LS-3FL200200 | 200 x 200 mm | 30.7 W | $219.00 | 11 in stock | View | |
| LS-3FL300150 | 300 x 150 mm | 34.6 W | $239.00 | 11 in stock | View | |
| LS-3FL250200 | 250 x 200 mm | 38.4 W | $259.00 | 14 in stock | View | |
| LS-3FL300200 | 300 x 200 mm | 46.1 W | $289.00 | 9 in stock | View | |
| LS-3FL250250 | 250 x 250 mm | 48 W | $299.00 | 9 in stock | View | |
| LS-3FL400200 | 400 x 200 mm | 61.4 W | $359.00 | 10 in stock | View | |
| LS-3FL350250 | 350 x 250 mm | 67.2 W | $389.00 | 9 in stock | View | |
| LS-3FL300300 | 300 x 300 mm | 69.1 W | $399.00 | 12 in stock | View | |
| LS-3FL400300 | 400 x 300 mm | 92.2 W | $509.00 | 10 in stock | View | |
| LS-3FL350350 | 350 x 350 mm | 94.1 W | $519.00 | 11 in stock | View | |
| LS-3FL450300 | 450 x 300 mm | 103.7 W | $559.00 | 7 in stock | View | |
| LS-3FL500300 | 500 x 300 mm | 60.5 W | $609.00 | 11 in stock | View | |
| LS-3FL400400 | 400 x 400 mm | 122.9 W | $649.00 | 10 in stock | View | |
| LS-3FL600300 | 600 x 300 mm | 72.6 W | $719.00 | 11 in stock | View | |
| LS-3FL500400 | 500 x 400 mm | 80.6 W | $789.00 | 9 in stock | View | |
| LS-3FL450450 | 450 x 450 mm | 81.6 W | $799.00 | 11 in stock | View | |
| LS-3FL600400 | 600 x 400 mm | 96.8 W | $939.00 | 7 in stock | View | |
| LS-3FL500500 | 500 x 500 mm | 100.8 W | $969.00 | 8 in stock | View | |
| LS-3FL600500 | 600 x 500 mm | 121 W | $1,149.00 | 9 in stock | View | |
| LS-3FL800400 | 800 x 400 mm | 129 W | $1,219.00 | 9 in stock | View | |
| LS-3FL700500 | 700 x 500 mm | 141.1 W | $1,329.00 | 9 in stock | View | |
| LS-3FL600600 | 600 x 600 mm | 145.2 W | $1,359.00 | 12 in stock | View | |
| LS-3FL800500 | 800 x 500 mm | 161.3 W | $1,509.00 | 12 in stock | View | |
| LS-3FL800600 | 800 x 600 mm | 193.5 W | $1,789.00 | 9 in stock | View | |
| LS-3FL700700 | 700 x 700 mm | 197.6 W | $1,829.00 | 9 in stock | View | |
| LS-3FL800800 | 800 x 800 mm | 258 W | $2,359.00 | 9 in stock | View | |
| LS-3FL900900 | 900 x 900 mm | 326.6 W | $2,969.00 | 9 in stock | View | |
| LS-3FL10001000 | 1000 x 1000 mm | 403.2 W | $3,649.00 | 10 in stock | View |
