Backlights · 14 models · from $79.00

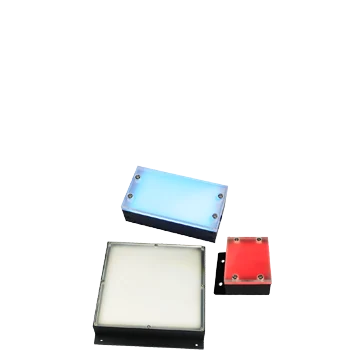

Classic flat backlights
The Classic flat backlights is a range of 14 backlights from LumaSpec Vision, from $79.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 37 x 37 mm, White, 58 x 30 mm, White, 78 x 64 mm, White, 98 x 84 mm, White, 135 x 115 mm, White, 180 x 114 mm, Red, 180 x 114 mm, White, 212 x 168 mm, White, 215 x 165 mm, White, 234 x 214 mm, White, 262 x 149 mm, White, 265 x 185 mm, Red, 420 x 240 mm, White |
|---|---|
| Type | Standard |
| Voltage | 24 V |
| Colour | Red, White |
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
All 14 models in the Classic flat backlights
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-LBSS-48-28-W | 58 x 30 mm, White | 2.4 W | $79.00 | 5 in stock | View |
| LS-LBSS-27-27-W | 37 x 37 mm, White | 1.6 W | $79.00 | 5 in stock | View |
| LS-LBSS-50-50-W | 78 x 64 mm, White | 5.76 W | $89.00 | 4 in stock | View |
| LS-LBSS-70-70-W | 98 x 84 mm, White | 11.52 W | $99.00 | 3 in stock | View |
| LS-LBSS-100-100-W | 135 x 115 mm, White | 19.2 W | $109.00 | 3 in stock | View |
| LS-LBSS-150-100-W | 180 x 114 mm, White | 26.4 W | $129.00 | 5 in stock | View |
| LS-LBSS-120-120-W | 215 x 165 mm, White | 19.5 W | $129.00 | 3 in stock | View |
| LS-LBSS-150-100-R | 180 x 114 mm, Red | 15 W | $129.00 | 4 in stock | View |
| LS-LBSS-180-150-W | 215 x 165 mm, White | 34.6 W | $169.00 | 5 in stock | View |
| LS-LBSS-200-160-W | 212 x 168 mm, White | 27.72 W | $189.00 | 3 in stock | View |
| LS-LBSS-250-125-W | 262 x 149 mm, White | 32.4 W | $189.00 | 4 in stock | View |
| LS-LBSS-250-150-R | 265 x 185 mm, Red | 36 W | $209.00 | 3 in stock | View |
| LS-LBSS-200-200-W | 234 x 214 mm, White | 60.6 W | $219.00 | 2 in stock | View |
| LS-LBSS-400-200-W | 420 x 240 mm, White | 81 W | $359.00 | 3 in stock | View |
