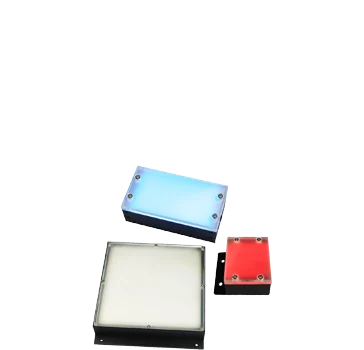

Flat Backlight, 180 x 114 mm, Red (LS-LBSS-150-100-R)
Model LS-LBSS-150-100-R
Flat Backlight, 180 x 114 mm, Red. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
Specifications
| Model | LS-LBSS-150-100-R |
|---|---|
| Color | Red |
| Wavelength | 625 nm |
| Connector type | SMR-03V-B |
| Power | 15 W |
| Cable length | 500 mm |
| Dimension | 180 mm × 114 mm × 19 mm |
| Emitting area dimension | 150 mm × 100 mm |
| Humidity | 20% to 85% RH (non-condensing) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic flat backlights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBSS-48-28-W | 58 x 30 mm, White | 2.4 W | $79.00 | 5 in stock | View |
| LS-LBSS-27-27-W | 37 x 37 mm, White | 1.6 W | $79.00 | 5 in stock | View |
| LS-LBSS-50-50-W | 78 x 64 mm, White | 5.76 W | $89.00 | 4 in stock | View |
| LS-LBSS-70-70-W | 98 x 84 mm, White | 11.52 W | $99.00 | 3 in stock | View |
| LS-LBSS-100-100-W | 135 x 115 mm, White | 19.2 W | $109.00 | 3 in stock | View |
| LS-LBSS-150-100-W | 180 x 114 mm, White | 26.4 W | $129.00 | 5 in stock | View |
| LS-LBSS-120-120-W | 215 x 165 mm, White | 19.5 W | $129.00 | 3 in stock | View |
| LS-LBSS-180-150-W | 215 x 165 mm, White | 34.6 W | $169.00 | 5 in stock | View |
| LS-LBSS-200-160-W | 212 x 168 mm, White | 27.72 W | $189.00 | 3 in stock | View |
| LS-LBSS-250-125-W | 262 x 149 mm, White | 32.4 W | $189.00 | 4 in stock | View |
| LS-LBSS-250-150-R | 265 x 185 mm, Red | 36 W | $209.00 | 3 in stock | View |
| LS-LBSS-200-200-W | 234 x 214 mm, White | 60.6 W | $219.00 | 2 in stock | View |
| LS-LBSS-400-200-W | 420 x 240 mm, White | 81 W | $359.00 | 3 in stock | View |
