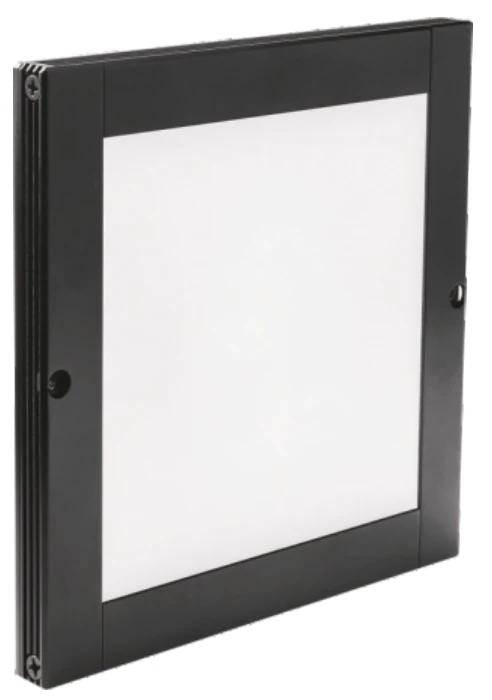

Side back light source (2FS)
The Side back light source (2FS) is a range of 15 backlights from LumaSpec Vision, from $89.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 150 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 200 mm, 268 x 168 mm, 300 x 200 mm, 320 x 320 mm, 400 x 300 mm, 450 x 350 mm, 568 x 568 mm, 600 x 400 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Edge-lit / ultra-thin |
| Voltage | 24 V |
Features
- Multilateral lights make the overall uniformity
- Ultra-thin design, can meet different installation space requirements
- Flexible size, convenient customization, wide range of applications
- Various installation methods for convenient mounting
Typical uses
- Liquid level inspection
- Dimension measurement
- Liquid foreign matter inspection
- Burr inspection for metal profile
- Appearance inspection
- Dimension measuring for workpiece
All 15 models in the Side back light source (2FS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FS5050 | 50 x 50 mm | 9 W | $89.00 | 13 in stock | View | |
| LS-2FS7070 | 70 x 70 mm | 9 W | $99.00 | 13 in stock | View | |
| LS-2FS100100 | 100 x 100 mm | 14 W | $109.00 | 14 in stock | View | |
| LS-2FS150100 | 150 x 100 mm | 18 W | $129.00 | 12 in stock | View | |
| LS-2FS150150 | 150 x 150 mm | 18 W | $159.00 | 10 in stock | View | |
| LS-2FS200150 | 200 x 150 mm | 23 W | $189.00 | 13 in stock | View | |
| LS-2FS200200 | 200 x 200 mm | 23 W | $219.00 | 16 in stock | View | |
| LS-2FS268168 | 268 x 168 mm | 32 W | $239.00 | 13 in stock | View | |
| LS-2FL250200 | 250 x 200 mm | 28 W | $259.00 | 13 in stock | View | |
| LS-2FS300200 | 300 x 200 mm | 32 W | $289.00 | 12 in stock | View | |
| LS-2FS320320 | 320 x 320 mm | 36 W | $439.00 | 19 in stock | View | |
| LS-2FS400300 | 400 x 300 mm | 56 W | $509.00 | 12 in stock | View | |
| LS-2FS450350 | 450 x 350 mm | 56 W | $639.00 | 14 in stock | View | |
| LS-2FS600400 | 600 x 400 mm | 79 W | $939.00 | 12 in stock | View | |
| LS-2FS568568 | 568 x 568 mm | 79 W | $1,229.00 | 10 in stock | View |
