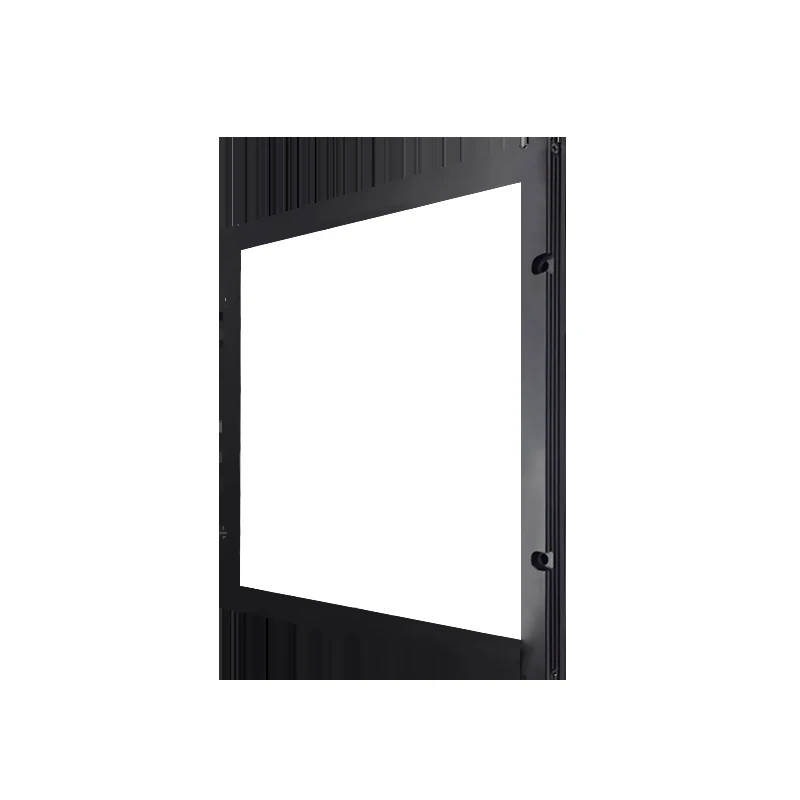

200 x 200 mm Ultra-thin flat light / side backlight (2FLC series) (LS-2FLC200200)
Model LS-2FLC200200
Ultra-thin flat light (side backlight), 10.5 mm high, with SMD LEDs; luminous areas from 100 x 100 to 300 x 300 mm.
Features
- 10.5 mm thickness
- Side-lit SMD LEDs
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Specifications
| Model | LS-2FLC200200 |
|---|---|
| Voltage | 24 V DC |
| LED type | SMD |
| Wire length | 500 mm (drawing) |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Luminous size (mm) | 200x200 |
| Voltage (V) | 24 |
| Power blue/white (W) | 13.4 |
| Long (mm) | 235 |
| Wide (mm) | 235 |
| High (mm) | 10.5 |
| Shipping weight | 0.80 kg |
Applications
- Glass scratch detection
- PCB board printing defect detection
- Reflective plane defect detection
- Sheet metal detection (white background with contrasting black edges)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Ultra-thin flat light / side backlight (2FLC series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-2FLC100100 | 100 x 100 mm | 6.7 W | $109.00 | 5 in stock | View | |
| LS-2FCL150150 | 150 x 150 mm | 10.1 W | $159.00 | 6 in stock | View | |
| LS-2FLC250250 | 250 x 250 mm | 16.8 W | $299.00 | 7 in stock | View | |
| LS-2FLC300300 | 300 x 300 mm | 20.2 W | $399.00 | 8 in stock | View |
