200 x 150 mm Side light / edge-lit area light (HFL) (LS-HFL200150K)
Model LS-HFL200150K

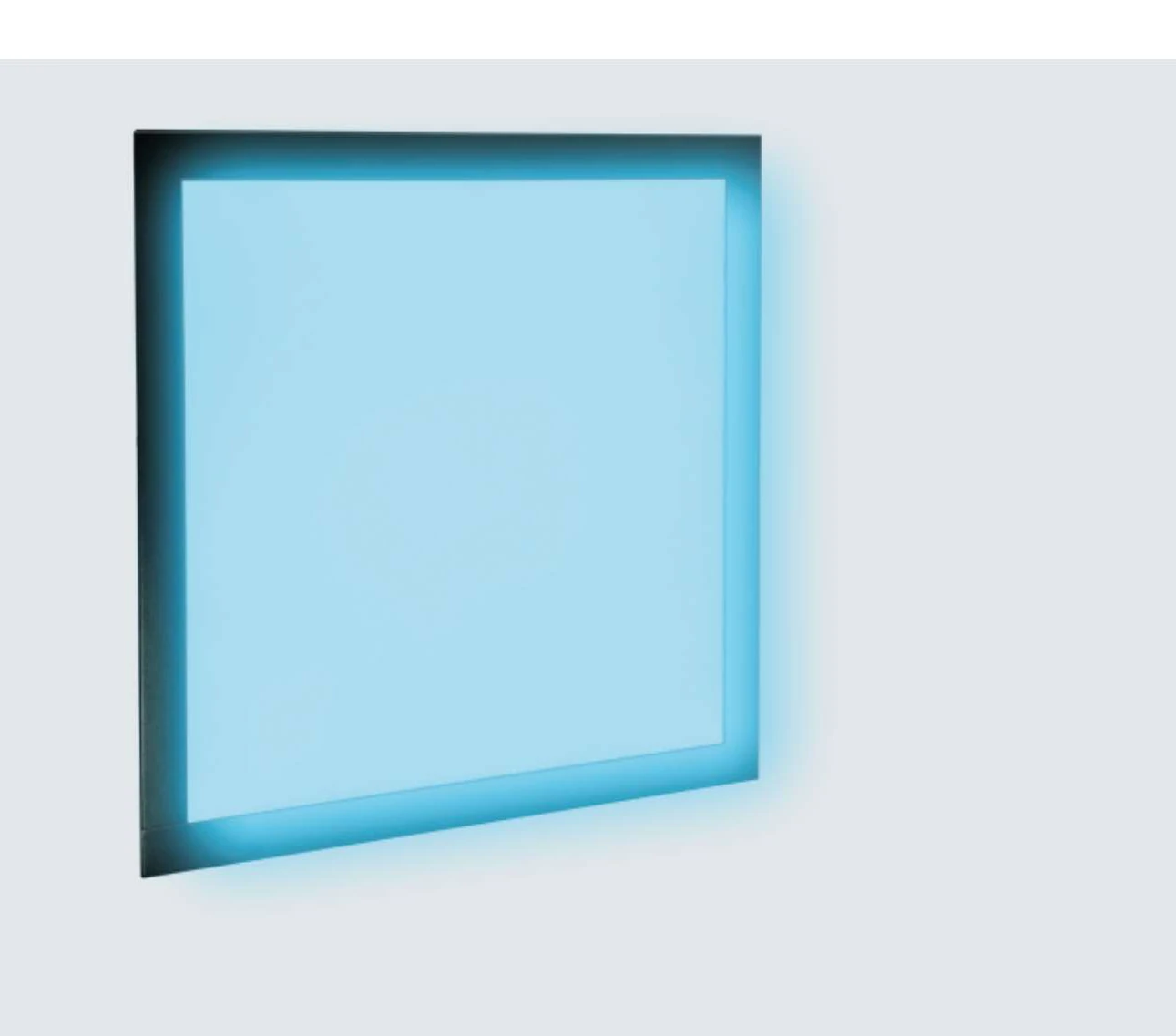

Edge-lit area light: the LEDs are distributed evenly along the sides of the light and a light-guide plate and diffuser form an even emitting surface. Sizes are flexible and easy to customise; square or round holes can be made.
Features
- Ultra-thin design, freely customisable size
- Large-area, highly uniform flat illumination
- Versions with a centre hole (HOLE series, -K<hole dia.>)
Specifications
| Model | LS-HFL200150K |
|---|---|
| Cable length (mm) | 500 |
| Mounting | M4 through holes (per drawing) |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting area (mm, drawing) | 200 x 150 |
| Shipping weight | 0.65 kg |
Applications
- Outline measurement, machined dimension measurement, glass bottle damage, foreign matter
- Surface scratches, internal foreign matter and damage on transparent objects
- Tablet appearance inspection, carton positioning, remote-control key character recognition
- Backlit inspection of LED substrates, outer contour edge positioning
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Side light / edge-lit area light (HFL) series
