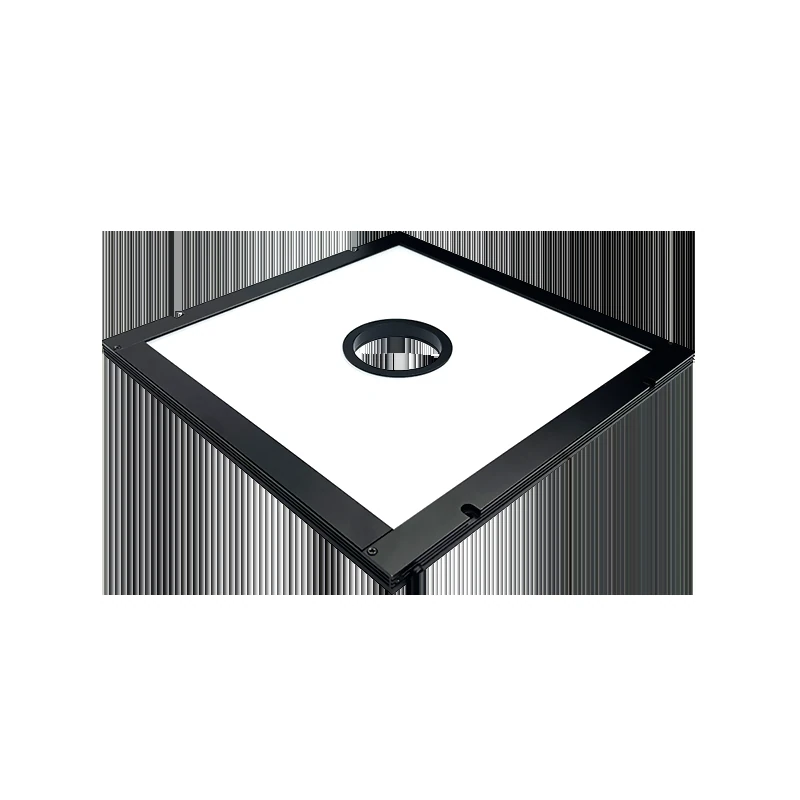

300 x 300 mm Hole side backlight (2FLCH series) (LS-2FLCH300300K50)
Model LS-2FLCH300300K50
Ultra-thin side-lit backlight with a 50 mm centre hole (aperture) so the light can be used from the camera side; 10.5 mm high, SMD LEDs.
Features
- Centre hole dia. 50 mm (remark: hole diameter 50)
- 10.5 mm thickness
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Specifications
| Model | LS-2FLCH300300K50 |
|---|---|
| Voltage | 24 V DC |
| LED type | SMD |
| Hole diameter | 50 mm |
| Wire length | 500 mm (drawing) |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Luminous size (mm) | 300x300 |
| Voltage (V) | 24 |
| Power blue/white (W) | 20.2 |
| Long (mm) | 335 |
| Wide (mm) | 335 |
| High (mm) | 10.5 |
| Remark | hole diameter 50 mm |
| Shipping weight | 1.45 kg |
Applications
- Measurement of the four dimensions of the object
- Edge breakage detection
- Transparent object impurity detection
- Phone case edge detection
- Sole contour detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Hole side backlight (2FLCH series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-2FLCH150150K50 | 150 x 150 mm | 10.1 W | $159.00 | 6 in stock | View | |
| LS-2FLCH200200K50 | 200 x 200 mm | 13.4 W | $219.00 | 8 in stock | View | |
| LS-2FLCH250250K50 | 250 x 250 mm | 16.8 W | $299.00 | 5 in stock | View |
