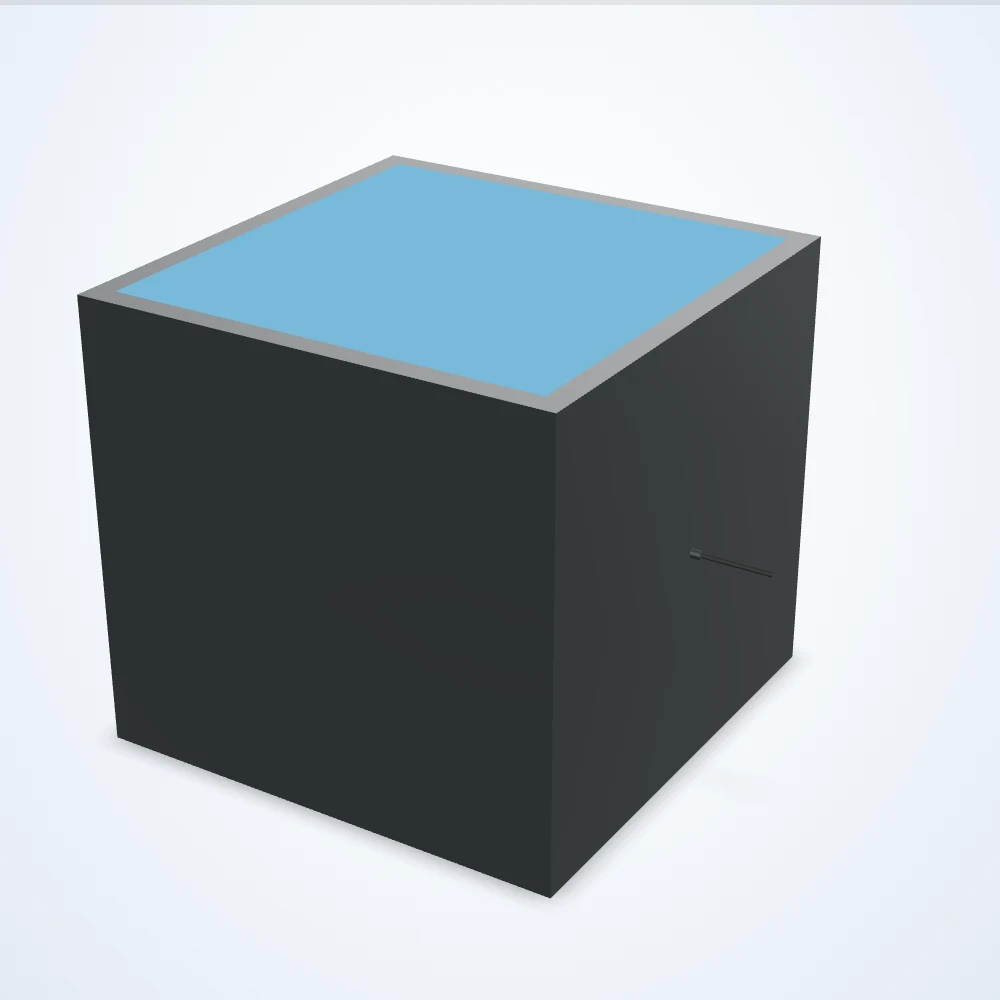

Rendered illustration: the actual product may differ in appearance.
Backlights
555.9 x 555.9 mm backlight (LS-BKL-0144-L19)
Model LS-BKL-0144-L19
555.9 x 555.9 mm backlight. Lit area 501.5 x 501.5 mm. Connection: Flying Leads. Available in 22 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.
Specifications
| Model | LS-BKL-0144-L19 |
|---|---|
| Active Length (mm) | 501.5 |
| Active Width (mm) | 501.5 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 519.1 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 555.9 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Through Holes |
| Polarized | Not Polarized |
| Product Weight (Kg) | 7.3 |
| Product Weight (Lbs) | 16.11 |
| Voltage | 24 VDC |
| Width (mm) | 555.9 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 555.9 x 555.9 mm backlight series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0144-L1 | Price on request | 159 in stock | View | |
| LS-BKL-0144-L2 | Price on request | 160 in stock | View | |
| LS-BKL-0144-L3 | Price on request | 151 in stock | View | |
| LS-BKL-0144-L4 | Price on request | 193 in stock | View | |
| LS-BKL-0144-L5 | Price on request | 205 in stock | View | |
| LS-BKL-0144-L6 | Price on request | 182 in stock | View | |
| LS-BKL-0144-L7 | Price on request | 195 in stock | View | |
| LS-BKL-0144-L8 | Price on request | 192 in stock | View | |
| LS-BKL-0144-L9 | Price on request | 85 in stock | View | |
| LS-BKL-0144-L10 | Price on request | 74 in stock | View | |
| LS-BKL-0144-L11 | Price on request | 84 in stock | View | |
| LS-BKL-0144-L12 | Price on request | 75 in stock | View | |
| LS-BKL-0144-L13 | Price on request | 67 in stock | View | |
| LS-BKL-0144-L14 | Price on request | 79 in stock | View | |
| LS-BKL-0144-L15 | Price on request | 73 in stock | View | |
| LS-BKL-0144-L16 | Price on request | 74 in stock | View | |
| LS-BKL-0144-L17 | Price on request | 72 in stock | View | |
| LS-BKL-0144-L18 | Price on request | 78 in stock | View | |
| LS-BKL-0144-L20 | Price on request | 65 in stock | View | |
| LS-BKL-0144-L21 | Price on request | 81 in stock | View | |
| LS-BKL-0144-L22 | Price on request | 82 in stock | View | |
| LS-BKL-0144-L23 | Price on request | 75 in stock | View |
