Backlight, 601.5 x 601.5 mm lit area (LS-BKL-0144-L23)

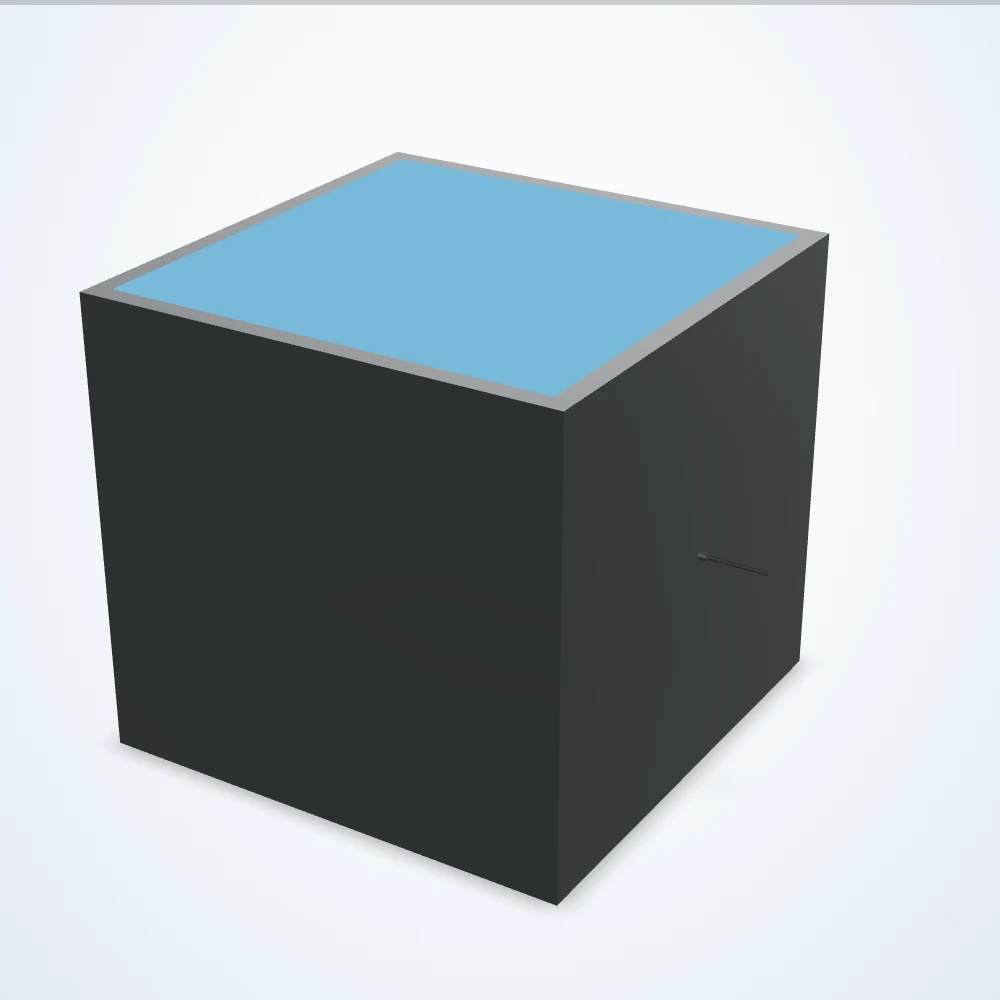

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 601.5 x 601.5 mm lit area (LS-BKL-0144-L23)

Model LS-BKL-0144-L23

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 601.5 x 601.5 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (22 configurations) and request a quote.

Price on request
Built to order: ships in about 4-5 weeks

Configuration LS-BKL-0144-716 of 22

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-BKL-0144-L23

Specifications

ModelLS-BKL-0144-L23
Lit length (mm)601.5
Lit width (mm)601.5
Length (mm)655.9
Width (mm)655.9
Height (mm)619.1
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Operating temperatureup to 60 °C
IP ratingIP50
HousingAluminum
MountingThrough Holes
CollimatedNot Collimated
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Driver nomenclature24V / iCS4 - I4 (by configuration)
Maximum constant on current (ma)2623 / 3935 (by configuration)
Maximum current (overcurrent strobe) (ma)8000 (by configuration)
Maximum duty cycle (%)100
Maximum input power constant on (w)63 / 94.4 (by configuration)
Maximum input power overcurrent strobe (w)150 (by configuration)
Maximum overcurrent strobe frequency (hz)2000 (by configuration)
Maximum overcurrent strobe latency (us)20 (by configuration)
NPN trigger voltage (v)< 1 VDC (by configuration)
PNP trigger current (ma)5 (by configuration)
PNP trigger voltage (v)2.5-30 VDC (by configuration)
PolarizedNot Polarized
ComplianceCE, IEC 62471, RoHS
