Area scan cameras · 60 models · from $1,129.00

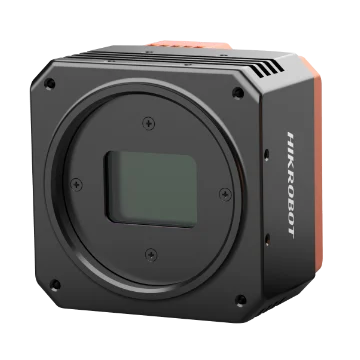

CH Series 10GigE Area Scan Cameras
The CH Series 10GigE Area Scan Cameras is a range of 60 area scan cameras from Hikrobot, from $1,129.00. It comes in 26 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 5 MP, 2/3", 10GigE, Color, 5 MP, 2/3", 10GigE, Mono, 12.3 MP, 1.1", 10GigE, Color, 12.3 MP, 1.1", 10GigE, Mono, 12.6 MP, 1.1", 10GigE, Color, 12.6 MP, 1.1", 10GigE, Mono, 24.5 MP, 1.2", 10GigE, Mono, 26.2 MP, 1.1", 10GigE, 26.2 MP, 1.1", 10GigE, Color, 26.2 MP, 1.1", 10GigE, Mono, 26.2 MP, 10GigE, Color, 26.2 MP, 10GigE, Mono, 31.4 MP, 10GigE, Color, 31.4 MP, 10GigE, Mono, 45.5 MP, 10GigE, Color, 45.5 MP, 10GigE, Mono and 10 more |
|---|---|
| Interface | 10GigE |
| Resolution | 5 MP, 12 MP, 16-25 MP, 29 MP + |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | M58, M72, C-mount, F-mount |
| Sensor format | 2/3", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large |
Features
- 12 MP resolution, 3.45 µm pixel size
- Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
- 10GigE interface, compatible with Gigabit Ethernet, transmission distance up to 100 m
- Flexible mounting: holes on the top, bottom and front panels to choose from as needed
- 25 MP resolution, 2.5 µm pixel size
- C-mount lens compatible to reduce optical system cost
- 65 MP resolution, 3.2 µm pixel size
- Automatic or manual adjustment of exposure time, gamma correction, LUT and more
All 60 models in the CH Series 10GigE Area Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MVGL-AC409G-68TC | 12.3 MP, 1.1", 10GigE, Color | $1,129.00 | 3 in stock | View |
| MV-HY2500-00W-BCN | 26.2 MP, 1.1", 10GigE, Color | $1,489.00 | 3 in stock | View |
| MV-HH2500-TM | 26.2 MP, 1.1", 10GigE, Mono | $1,489.00 | 2 in stock | View |
| MV-HY6500-00W-HFN | 65.4 MP, 10GigE, Mono | $1,919.00 | 4 in stock | View |
| MV-HY6500-00W-BFN | 65.4 MP, 10GigE, Color | $1,919.00 | 5 in stock | View |
| MV-HH6500-TM-M-NF | 65.4 MP, 10GigE, Mono | $1,919.00 | 4 in stock | View |
| MV-CH250-90TM-M58S-NF | 26.2 MP, 1.1", 10GigE, Mono | $2,649.00 quote | 5 in stock | View |
| MV-CH250-90TC-M58S-NF | 26.2 MP, 1.1", 10GigE, Color | $2,649.00 quote | 2 in stock | View |
| MV-CH250-90TM-M58S-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | $2,649.00 quote | 3 in stock | View |
| MV-CH250-90TC-M58S-NF V2 | 26.2 MP, 1.1", 10GigE, Color | $2,649.00 quote | 5 in stock | View |
| MV-CH050-90TM-C-NF | 5 MP, 2/3", 10GigE, Mono | $3,599.00 quote | 4 in stock | View |
| MV-CH050-90TC-C-NF | 5 MP, 2/3", 10GigE, Color | $3,599.00 quote | 3 in stock | View |
| MV-CH120-15TM-M58S-NF | 12.3 MP, 1.1", 10GigE, Mono | $3,929.00 quote | 5 in stock | View |
| MV-CH120-15TC-M58S-NF | 12.3 MP, 1.1", 10GigE, Color | $3,929.00 quote | 3 in stock | View |
| MV-CH120-60TM-C-NF | 12.6 MP, 1.1", 10GigE, Mono | $5,099.00 quote | 4 in stock | View |
| MV-CH120-60TC-C-NF | 12.6 MP, 1.1", 10GigE, Color | $5,099.00 quote | 5 in stock | View |
| MV-CH120-90TM-C-NF | 12.6 MP, 1.1", 10GigE, Mono | $5,099.00 quote | 5 in stock | View |
| MV-CH120-90TC-C-NF | 12.6 MP, 1.1", 10GigE, Color | $5,099.00 quote | 2 in stock | View |
| MV-CH240-10TM-C-NN | 24.5 MP, 1.2", 10GigE, Mono | $6,999.00 quote | 3 in stock | View |
| MV-CH240-10TM-M58S-NN | 24.5 MP, 1.2", 10GigE, Mono | $7,109.00 quote | 5 in stock | View |
| MV-CH250-25TM-M58S-NF | 26.2 MP, 10GigE, Mono | $7,349.00 quote | 2 in stock | View |
| MV-CH250-25TC-M58S-NF | 26.2 MP, 10GigE, Color | $7,349.00 quote | 2 in stock | View |
| MV-CH250-25TM-F-NF | 26.2 MP, 10GigE, Mono | $7,349.00 quote | 3 in stock | View |
| MV-CH250-60TM-M58S-NF | 26.2 MP, 10GigE, Mono | $7,349.00 quote | 5 in stock | View |
| MV-CH250-90TM-C-NF | 26.2 MP, 1.1", 10GigE, Mono | $7,349.00 quote | 2 in stock | View |
| MV-CH250-90TC-C-NF | 26.2 MP, 1.1", 10GigE, Color | $7,349.00 quote | 5 in stock | View |
| MV-CH250-90TM-C-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | $7,349.00 quote | 5 in stock | View |
| MV-CH250-90TC-C-NF V2 | 26.2 MP, 1.1", 10GigE, Color | $7,349.00 quote | 3 in stock | View |
| MV-CH250-92TM-C-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | $7,349.00 quote | 2 in stock | View |
| MV-CH250-92TC-C-NF V2 | 26.2 MP, 1.1", 10GigE, Color | $7,349.00 quote | 5 in stock | View |
| MV-CH250-25TC-F-NF | 26.2 MP, 10GigE, Color | $7,349.00 quote | 2 in stock | View |
| MV-CH250-90TN-M58S-NF | 26.2 MP, 1.1", 10GigE | $7,349.00 quote | 5 in stock | View |
| MV-CH250-92TM-C-NF | 26.2 MP, 1.1", 10GigE, Mono | $7,349.00 quote | 4 in stock | View |
| MV-CH250-60TM-M58S-NF V2 | 26.2 MP, 10GigE, Mono | $7,349.00 quote | 2 in stock | View |
| MV-CH250-90TN-M58S-NF V2 | 26.2 MP, 1.1", 10GigE | $7,349.00 quote | 4 in stock | View |
| MV-CH470-10TC-M58S-NN | 45.5 MP, 10GigE, Color | $9,689.00 quote | 5 in stock | View |
| MV-CH470-10TM-M58S-NN | 45.5 MP, 10GigE, Mono | $9,689.00 quote | 2 in stock | View |
| MV-CH500-90TM-F-NF | 49.1 MP, 10GigE, Mono | $10,059.00 quote | 5 in stock | View |
| MV-CH500-90TM-F-NF V2 | 49.1 MP, 10GigE, Mono | $10,059.00 quote | 3 in stock | View |
| MV-CH500-90TM-M58S-NF | 49.1 MP, 10GigE, Mono | $10,059.00 quote | 2 in stock | View |
| MV-CH500-90TM-M58S-NF V2 | 49.1 MP, 10GigE, Mono | $10,059.00 quote | 3 in stock | View |
| MV-CH500-90TC-M58S-NF | 49.1 MP, 10GigE, Color | $10,059.00 quote | 3 in stock | View |
| MV-CH500-90TC-M58S-NF V2 | 49.1 MP, 10GigE, Color | $10,059.00 quote | 3 in stock | View |
| MV-CH310-10TM-M58S-NN | 31.4 MP, 10GigE, Mono | $10,069.00 quote | 4 in stock | View |
| MV-CH310-10TC-M58S-NN | 31.4 MP, 10GigE, Color | $10,069.00 quote | 2 in stock | View |
| MV-CH610-10TM-F-TF | 61 MP, 10GigE, Mono | $11,219.00 quote | 3 in stock | View |
| MV-CH610-10TC-F-TF | 61 MP, 10GigE, Color | $11,219.00 quote | 2 in stock | View |
| MV-CH650-90TM-F-NF | 65.4 MP, 10GigE, Mono | $11,609.00 quote | 3 in stock | View |
| MV-CH650-90TC-F-NF | 65.4 MP, 10GigE, Color | $11,609.00 quote | 3 in stock | View |
| MV-CH650-90TM-F-NF V2 | 65.4 MP, 10GigE, Mono | $11,609.00 quote | 2 in stock | View |
| MV-CH650-90TC-F-NF V2 | 65.4 MP, 10GigE, Color | $11,609.00 quote | 4 in stock | View |
| MV-CH650-90TM-M58S-NF | 65.4 MP, 10GigE, Mono | $11,789.00 quote | 5 in stock | View |
| MV-CH650-90TC-M58S-NF | 65.4 MP, 10GigE, Color | $11,789.00 quote | 5 in stock | View |
| MV-CH650-90TM-M58S-NF V2 | 65.4 MP, 10GigE, Mono | $11,789.00 quote | 2 in stock | View |
| MV-CH650-90TC-M58S-NF V2 | 65.4 MP, 10GigE, Color | $11,789.00 quote | 3 in stock | View |
| MV-CH1030-90TM-M58S-NN | 103.6 MP, 10GigE, Mono | $14,609.00 quote | 5 in stock | View |
| MV-CH1030-90TC-M58S-NN | 103.6 MP, 10GigE, Color | $14,609.00 quote | 2 in stock | View |
| MV-CH1510-10FM-TEC-M72 | 151.2 MP, 10GigE, Mono | $17,649.00 quote | 3 in stock | View |
| MV-CH1510-10FM-M72-TF | 151.2 MP, 10GigE, Mono | $34,369.00 quote | 4 in stock | View |
| MV-CH1510-10FC-M72-TF | 151.2 MP, 10GigE, Color | $34,369.00 quote | 3 in stock | View |
