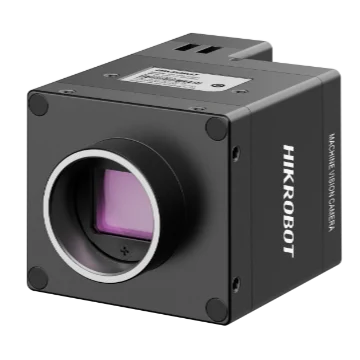

Hikrobot MV-CH120-90TC-C-NF 12 MP 10GigE area scan camera, GMAX3412, Small size, Color

Name: Hikrobot MV-CH120-90TC-C-NF 12 MP 10GigE area scan camera, GMAX3412, Small size, Color
Brand: Hikrobot
SKU: MV-CH120-90TC-C-NF

Model MV-CH120-90TC-C-NF

Hikrobot MV-CH120-90TC-C-NF 12 MP 10GigE area scan camera, GMAX3412, Small size, Color. 12 MP resolution, 3.4 µm pixel size C-mount lens compatible to reduce optical system cost

Datasheet (PDF, Chinese) - MV-CH120-90TC-C-NF User manual (PDF, Chinese) - MV-CH120-90TC-C-NF CAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-90TC-C-NF

Features

12 MP resolution, 3.4 µm pixel size
C-mount lens compatible to reduce optical system cost
10GigE interface, compatible with Gigabit Ethernet, transmission distance up to 100 m
Flexible mounting: holes on the top, bottom and front panels to choose from as needed

Specifications

Model	MV-CH120-90TC-C-NF
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX3412
Pixel size	3.4 μm × 3.4 μm
Sensor size	1.1"
Resolution	4096 × 3072
Max. frame rate	94 fps @4096 × 3072 Bayer GB 8
Dynamic range	60.1 dB
SNR	39 dB
Gain	0 dB ~ 6.1 dB
Exposure time	6 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer GB 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 ~ 24 VDC
Power consumption	10.9 W@12 VDC
Lens mount	C-Mount
Dimension	50 mm × 45 mm × 68.6 mm
Weight	Approx. 212 g (0.5 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.40 kg
