Hikrobot MV-CH120-90TM-C-NF 12MP Area Scan Camera, GMAX3412, 10GigE, Mono, C-mount, with fan
Model MV-CH120-90TM-C-NF

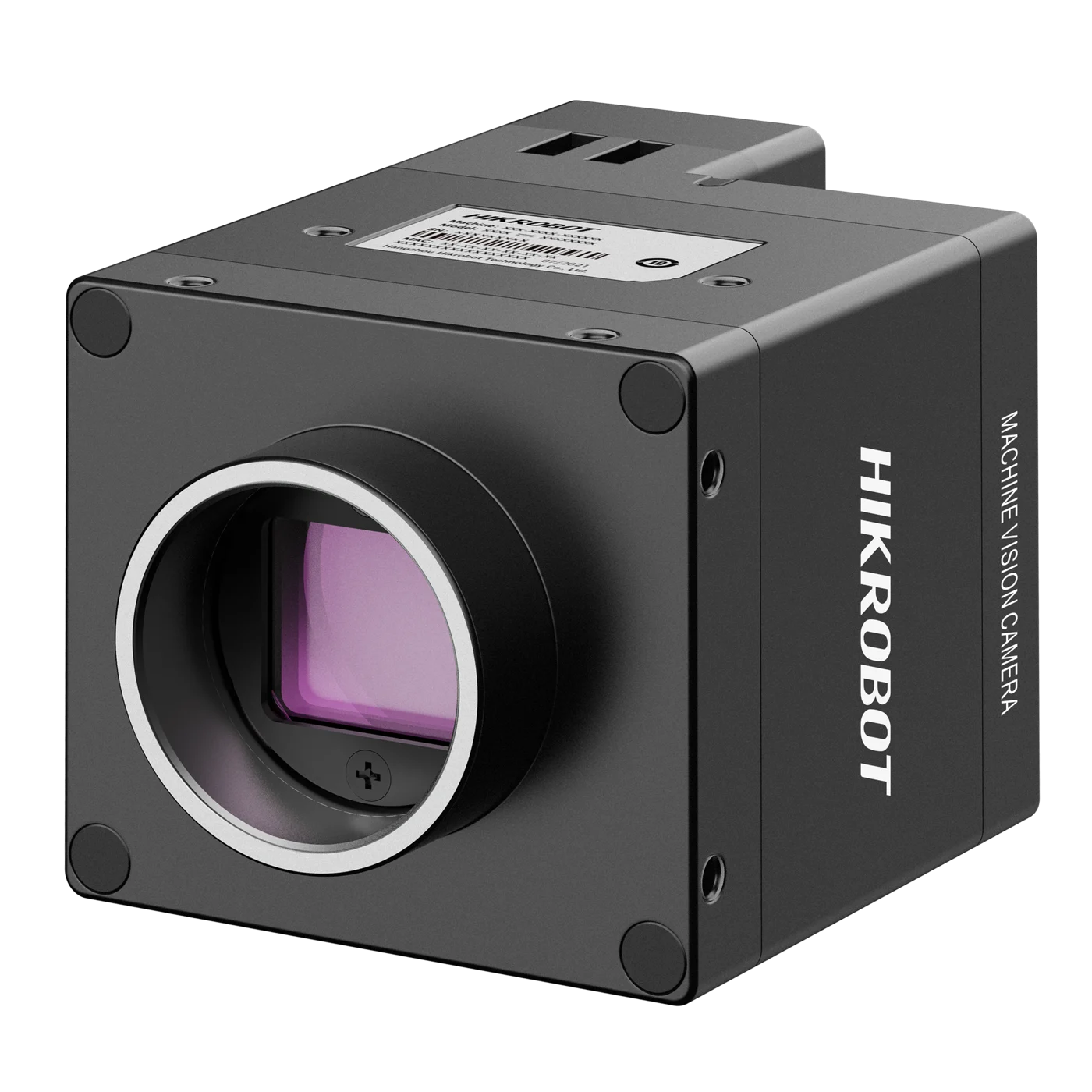

Hikrobot MV-CH120-90TM-C-NF 12MP Area Scan Camera, GMAX3412, 10GigE, Mono, C-mount, with fan. Resolution of 4096 × 3072, pixel size of 3.4 μm × 3.4 μm. Compatible with C-mount lens.
Datasheet (PDF) - MV-CH120-90TM-C-NFUser manual (PDF) - MV-CH120-90TM-C-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-90TM-C-NF
Features
- Resolution of 4096 × 3072, pixel size of 3.4 μm × 3.4 μm.
- Compatible with C-mount lens.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Provides mounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
Specifications
| Model | MV-CH120-90TM-C-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3412 |
| Pixel size | 3.4 μm × 3.4 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3072 |
| Max. frame rate | 94 fps @ 4096 × 3072 Mono 8 |
| Dynamic range | 60.1 dB |
| SNR | 39 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 6 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | 10.2 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7") |
| Weight | Approx. 212 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.40 kg |
