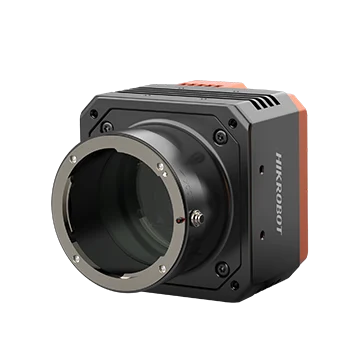

Hikrobot MV-CH250-25TM-F-NF 25MP Area Scan Camera, 10GigE, PYTHON25K, Mono, F-mount
Model MV-CH250-25TM-F-NF
Hikrobot MV-CH250-25TM-F-NF 25MP Area Scan Camera, 10GigE, PYTHON25K, Mono, F-mount. Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm. Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
Datasheet (PDF) - MV-CH250-25TM-F-NFUser manual (PDF) - MV-CH250-25TM-F-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-25TM-F-NF
Features
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look-Up Table (LUT), Gamma correction, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
Specifications
| Model | MV-CH250-25TM-F-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Max. frame rate | 40 fps @ 5120 × 5120 Mono 8 |
| Dynamic range | 58 dB |
| SNR | 41 dB |
| Gain | 0 dB to 15 dB |
| Exposure time | 45 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 11.5 W @ 24 VDC |
| Lens mount | F-mount, flange back length 46.5 mm |
| Dimension | F-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9" × 2.9" × 3.1") |
| Weight | F-mount with fan: approx. 600 g (1.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.94 kg |
