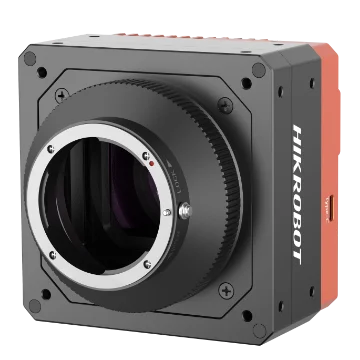

Hikrobot MV-CH610-10TM-F-TF 61MP Area Scan Camera, IMX455, 10GigE, mono, F-mount, with TEC
Model MV-CH610-10TM-F-TF
Hikrobot MV-CH610-10TM-F-TF 61MP Area Scan Camera, IMX455, 10GigE, mono, F-mount, with TEC. Provides highly-integrated hardware platform, and supports low power consumption and high cooling efficiency. Adopts a new design with a detachable lens mount.
Datasheet (PDF) - MV-CH610-10TM-F-TFUser manual (PDF) - MV-CH610-10TM-F-TFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH610-10TM-F-TF
Features
- Provides highly-integrated hardware platform, and supports low power consumption and high cooling efficiency.
- Adopts a new design with a detachable lens mount.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Adopts TEC to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
- Supports 16-bit ADC output with high-precision sampling and high dynamic range.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
Specifications
| Model | MV-CH610-10TM-F-TF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX455 |
| Pixel size | 3.76 μm × 3.76 μm |
| Sensor size | 36 mm × 24 mm |
| Resolution | 9568 × 6380 |
| Max. frame rate | 17.9 fps @ 9568 × 6380 Mono 8 |
| Dynamic range | 75.3 dB |
| SNR | 46.8 dB |
| Gain | 0 dB to 36 dB |
| Exposure time | 9 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed/16 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 24 VDC |
| Power consumption | Typ. 14.4 W @ 24 VDC (non-TEC mode); Typ. 27.6 W @ 24 VDC (TEC mode) |
| Lens mount | F-mount, flange back length 46.5 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1090 g (2.4 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.63 kg |
