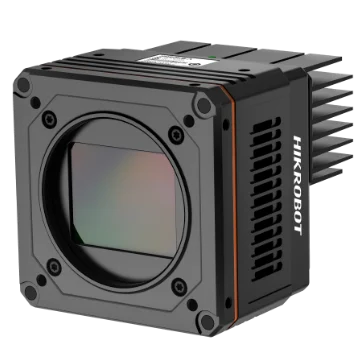

Hikrobot MV-CH1030-90TM-M58S-NN 103MP Area Scan Camera, 10GigE, GMAX32103, Mono
Model MV-CH1030-90TM-M58S-NN
Hikrobot MV-CH1030-90TM-M58S-NN 103MP Area Scan Camera, 10GigE, GMAX32103, Mono. Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm. Supports auto or manual adjustment of exposure time and white balance, and manual adjustment of gain, Gamma correction, LUT, etc.
Datasheet (PDF) - MV-CH1030-90TM-M58S-NNUser manual (PDF) - MV-CH1030-90TM-M58S-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH1030-90TM-M58S-NN
Features
- Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm.
- Supports auto or manual adjustment of exposure time and white balance, and manual adjustment of gain, Gamma correction, LUT, etc.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Adopts installation holes for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
Specifications
| Model | MV-CH1030-90TM-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX32103 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 46.6 mm |
| Resolution | 11264 × 9200 |
| Max. frame rate | 11 fps @ 11264 × 9200 Mono 8 |
| Dynamic range | 64.86 dB |
| SNR | 39.88 dB |
| Gain | 1.4 × to 5.2 × |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 12.6 W @ 12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | 738 g (1.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.13 kg |
