Hikrobot MV-CH120-15TM-M58S-NF 12MP Area Scan Camera, 10GigE, IMX253, Mono, M58-mount
Model MV-CH120-15TM-M58S-NF

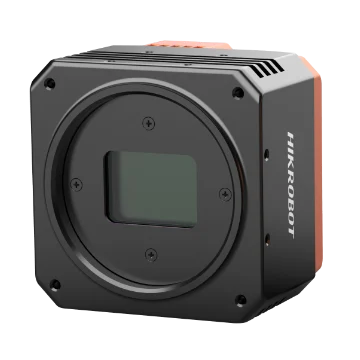

Hikrobot MV-CH120-15TM-M58S-NF 12MP Area Scan Camera, 10GigE, IMX253, Mono, M58-mount. Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm. Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
Datasheet (PDF) - MV-CH120-15TM-M58S-NFUser manual (PDF) - MV-CH120-15TM-M58S-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-15TM-M58S-NF
Features
- Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CH120-15TM-M58S-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX253 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 68.3 fps @ 4096 × 3000 |
| Dynamic range | 71.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 2 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000Mbit/s), compatible with Gigabit Ethernet (1000Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 9.6 W @ 24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 74 mm × 74 mm × 72.4 mm (2.9" × 2.9" × 2.9") |
| Weight | Approx. 550 g (1.2 lb) |
| Ingress protection | IP40 ( under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.87 kg |
