Area scan cameras · 18 models · from $2,699.00

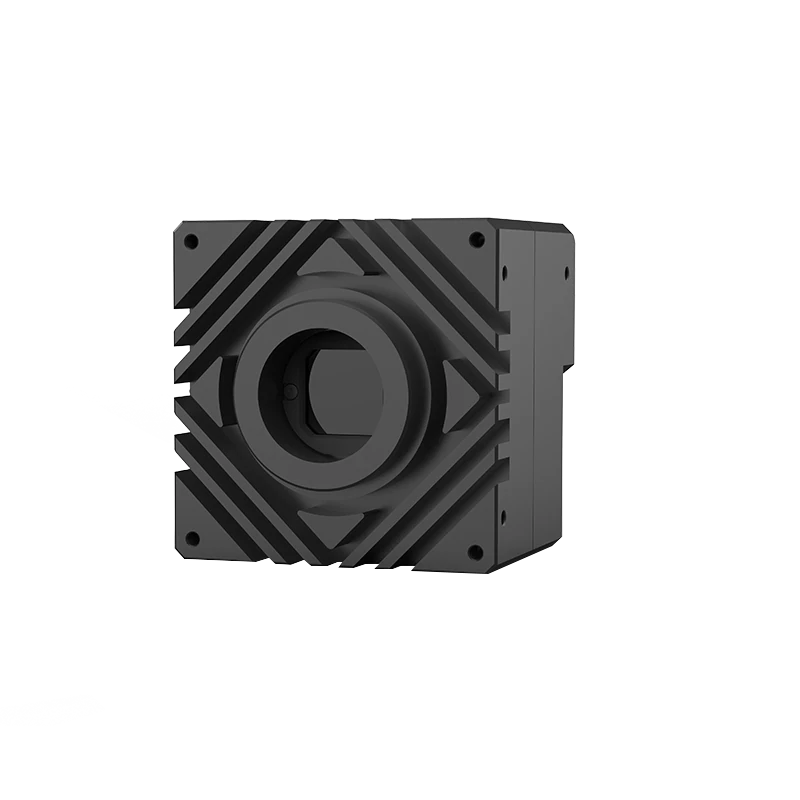

10 GigE area scan camera (LS-MV-...-10G)
The 10 GigE area scan camera (LS-MV-...-10G) is a range of 18 area scan cameras from LumaSpec Vision, from $2,699.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.5 MP, 10GigE, Color/Mono, 1.8 MP, 10GigE, Color/Mono, 2.8 MP, 10GigE, Color/Mono, 4.2 MP, 10GigE, Color/Mono, 5.0 MP, 10GigE, Color/Mono, 5.6 MP, 10GigE, Color/Mono, 9.1 MP, 10GigE, Color/Mono, 13 MP, 10GigE, Color/Mono, 17 MP, 10GigE, Color/Mono, 18 MP, 10GigE, Color/Mono, 26 MP, 10GigE, Color, 26 MP, 10GigE, Color/Mono, 31 MP, 10GigE, Color/Mono, 46 MP, 10GigE, Color/Mono, 65 MP, 10GigE, Color/Mono, 104 MP, 10GigE, Color/Mono |
|---|---|
| Interface | 10GigE |
| Resolution | Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP + |
| Shutter | Global, Rolling |
| Lens mount | M58, C-mount |
| Sensor format | 1/2", 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large |
| Colour | Color |
Features
- Reserved fan interface to control camera temperature
- 0.5MP to 100MP pixels with a maximum frame rate of 1594FPS
- Standard 10 Gigabit network interface; stable communication over Cat6 (super six) network cable
- Cost greatly reduced compared with CameraLink interface plus capture card
- Transmission distance up to 100 meters, backward compatible with Gigabit Ethernet
- Effective bandwidth 1200MByte, 10 times Gigabit network, greatly reducing image transmission time and delay
- Supports GigE Vision and GenICam, same SDK as the Gigabit network camera, shortening development cycle
- Using standard 10 Gigabit network interface design.
Typical uses
- PCB
- Screen detection
- Lithium battery
- Railway
All 18 models in the 10 GigE area scan camera (LS-MV-...-10G)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-MV-51C/M-10G | 0.5 MP, 10GigE, Color/Mono | 12 W | $2,699.00 | 8 in stock | View |
| LS-MV-170C/M-10G | 1.8 MP, 10GigE, Color/Mono | $2,699.00 | 9 in stock | View | |
| LS-MV-280C/M-10G | 2.8 MP, 10GigE, Color/Mono | $2,699.00 | 7 in stock | View | |
| LS-MV-402C/M | 4.2 MP, 10GigE, Color/Mono | $2,699.00 | 10 in stock | View | |
| LS-MV-503C/M-10G | 5.6 MP, 10GigE, Color/Mono | $2,699.00 | 6 in stock | View | |
| LS-MV-507C/M-10G | 5.0 MP, 10GigE, Color/Mono | $2,699.00 | 4 in stock | View | |
| LS-MV-903C/M-10G | 9.1 MP, 10GigE, Color/Mono | $2,949.00 | 7 in stock | View | |
| LS-MV-1205C/M-10G | 13 MP, 10GigE, Color/Mono | $3,829.00 | 8 in stock | View | |
| LS-MV-1606C/M-10G | 17 MP, 10GigE, Color/Mono | $3,829.00 | 5 in stock | View | |
| LS-MV-1207C/M-10G | 13 MP, 10GigE, Color/Mono | $3,829.00 | 7 in stock | View | |
| LS-MV-1803C/M-10G | 18 MP, 10GigE, Color/Mono | $5,339.00 | 6 in stock | View | |
| LS-MV-2500C/M-10G | 26 MP, 10GigE, Color/Mono | $5,519.00 | 8 in stock | View | |
| LS-MV-2600C-10G | 26 MP, 10GigE, Color | $5,519.00 | 4 in stock | View | |
| LS-MV-2501C/M-10G | 26 MP, 10GigE, Color/Mono | $5,519.00 | 5 in stock | View | |
| LS-MV-4701C/M-10G | 46 MP, 10GigE, Color/Mono | 12 W | $7,269.00 | 8 in stock | View |
| LS-MV-3100C/M-10G | 31 MP, 10GigE, Color/Mono | $7,559.00 | 8 in stock | View | |
| LS-MV-6500C/M-10G | 65 MP, 10GigE, Color/Mono | $8,849.00 | 5 in stock | View | |
| LS-MV-10000C/M-10G | 104 MP, 10GigE, Color/Mono | $10,959.00 quote | 7 in stock | View |
