Area scan cameras · 4 models · from $659.00

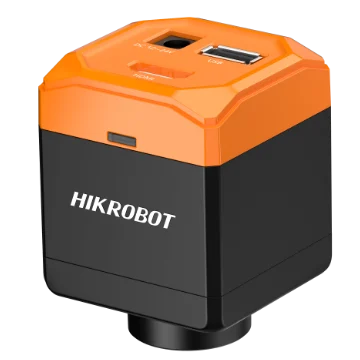

HDMI Microscope Cameras
The HDMI Microscope Cameras is a range of 4 area scan cameras from Hikrobot, from $659.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 2.1 MP, 1/2", HDMI, Color, 3.7 MP, 1/1.88", HDMI, Color, 12.4 MP, 1/1.56", HDMI, Color |
|---|---|
| Interface | HDMI |
| Resolution | Up to 3 MP, 5 MP, 12 MP |
| Shutter | Rolling |
| Colour | Color |
| Lens mount | C-mount |
| Sensor format | 1/2", 1/1.8" - 1/1.56" |
Features
- Supports 2 MP high-quality image and 60 fps frame rate.
- Provides HDMI interface to connect to a monitor directly.
- Provides USB 2.0 interface to connect to a mouse.
- Supports cross line on the image, and horizontal and vertical reverse image output.
- Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.
- Supports 4 MP high-quality image and 30 fps frame rate.
- Provides USB interface to connect to a mouse or a USB flash disk.
- Provides USB 3.0 interface to connect to the PC for operation on the client software.
All 4 models in the HDMI Microscope Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CM2020C-0H | 2.1 MP, 1/2", HDMI, Color | $659.00 | 2 in stock | View |
| MV-CM3040C-1H | 3.7 MP, 1/1.88", HDMI, Color | $879.00 | 5 in stock | View |
| MV-CM3040C-1H(MSD) | 3.7 MP, 1/1.88", HDMI, Color | $879.00 | 3 in stock | View |
| MV-CM3120C-1H | 12.4 MP, 1/1.56", HDMI, Color | $1,609.00 | 2 in stock | View |
