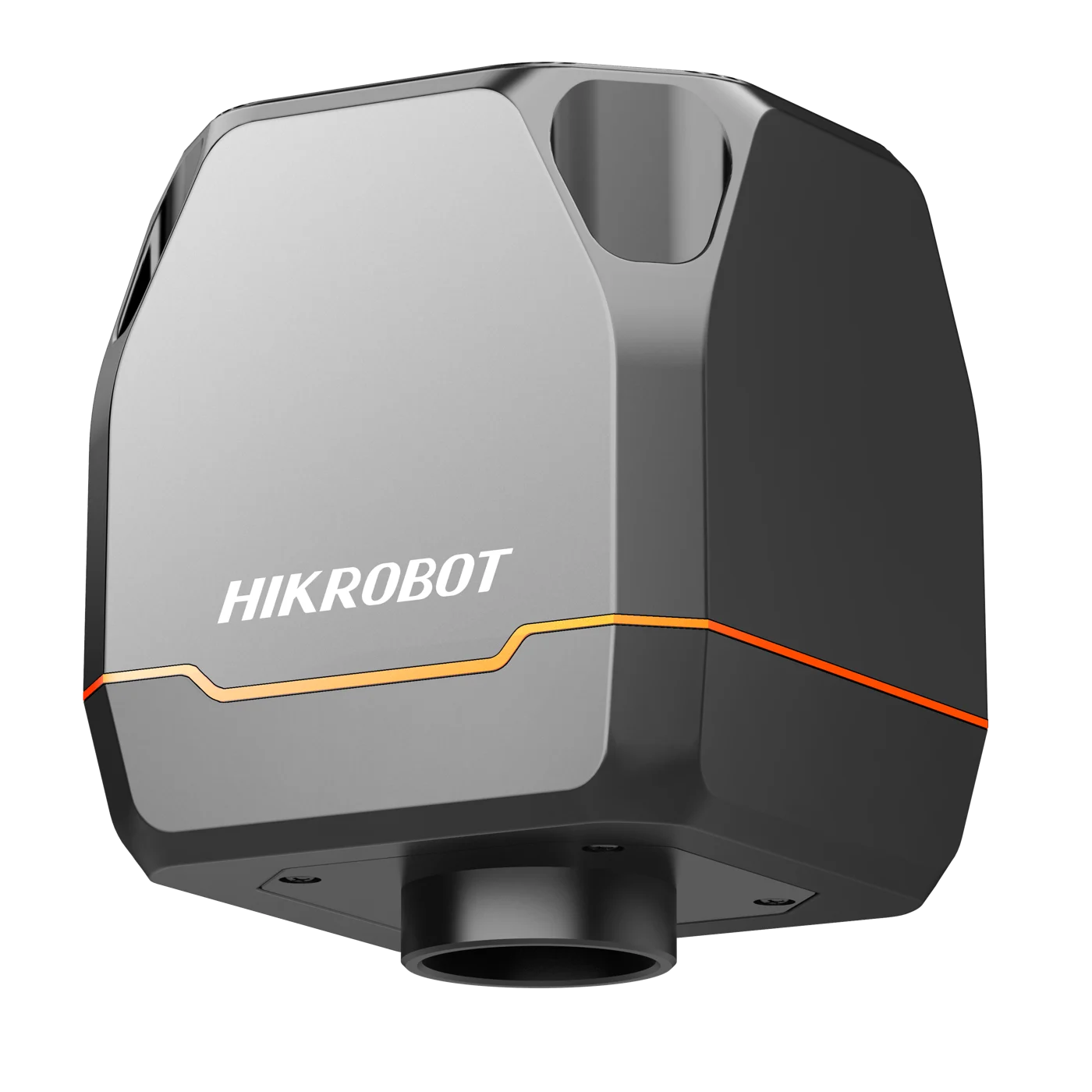

Hikrobot MV-CM3040C-1H 4MP HDMI Camera with Measurement
Model MV-CM3040C-1H
Hikrobot MV-CM3040C-1H 4MP HDMI Camera with Measurement. Supports 4 MP high-quality image and 30 fps frame rate. Provides HDMI interface to connect to a monitor directly.
Features
- Supports 4 MP high-quality image and 30 fps frame rate.
- Provides HDMI interface to connect to a monitor directly.
- Provides USB interface to connect to a mouse or a USB flash disk.
- Provides USB 3.0 interface to connect to the PC for operation on the client software.
- Supports image storage and image-related parameter adjustment.
- Supports measurement functions and report generation.
Specifications
| Model | MV-CM3040C-1H |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.9 μm × 2.9 μm |
| Sensor size | 1/1.88" |
| Resolution | 2560 × 1440 |
| Max. frame rate | 30 fps |
| Gain | 0 dB to 18 dB |
| Exposure time | 300 μs to 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Vision tool | Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction.; Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage.; Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement. |
| Transmission interface | HDMI |
| Control interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Power supply | 12 VDC to 24 VDC, independent power supply required |
| Power consumption | Typ. 3.6 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") |
| Weight | Approx. 430 g (0.9 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.70 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the HDMI Microscope Cameras series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-CM2020C-0H | 2.1 MP, 1/2", HDMI, Color | $659.00 | 2 in stock | View |
| MV-CM3040C-1H(MSD) | 3.7 MP, 1/1.88", HDMI, Color | $879.00 | 3 in stock | View |
| MV-CM3120C-1H | 12.4 MP, 1/1.56", HDMI, Color | $1,609.00 | 2 in stock | View |
