Area scan cameras

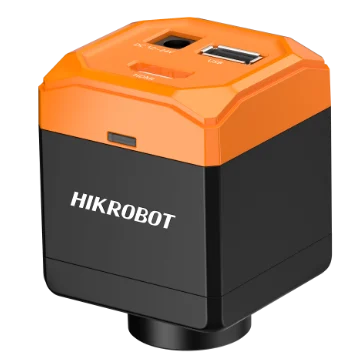

Hikrobot MV-CM2020C-0H 2MP HDMI Camera
Model MV-CM2020C-0H
Hikrobot MV-CM2020C-0H 2MP HDMI Camera. Supports 2 MP high-quality image and 60 fps frame rate. Provides HDMI interface to connect to a monitor directly.
Features
- Supports 2 MP high-quality image and 60 fps frame rate.
- Provides HDMI interface to connect to a monitor directly.
- Provides USB 2.0 interface to connect to a mouse.
- Supports cross line on the image, and horizontal and vertical reverse image output.
- Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.
Specifications
| Model | MV-CM2020C-0H |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 3.75 μm × 3.75 μm |
| Sensor size | 1/2" |
| Resolution | 1920 × 1080 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 42 dB |
| Exposure time | 300 μs to 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Reverse image | Supports horizontal and vertical reverse image output |
| Transmission interface | HDMI |
| Control interface | USB 2.0 |
| Power supply | 12 VDC to 24 VDC, independent power supply required |
| Power | Typ. 1.9 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Weight | 220 g (0.5 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.41 kg |
