Area scan cameras · 4 models · from $209.00

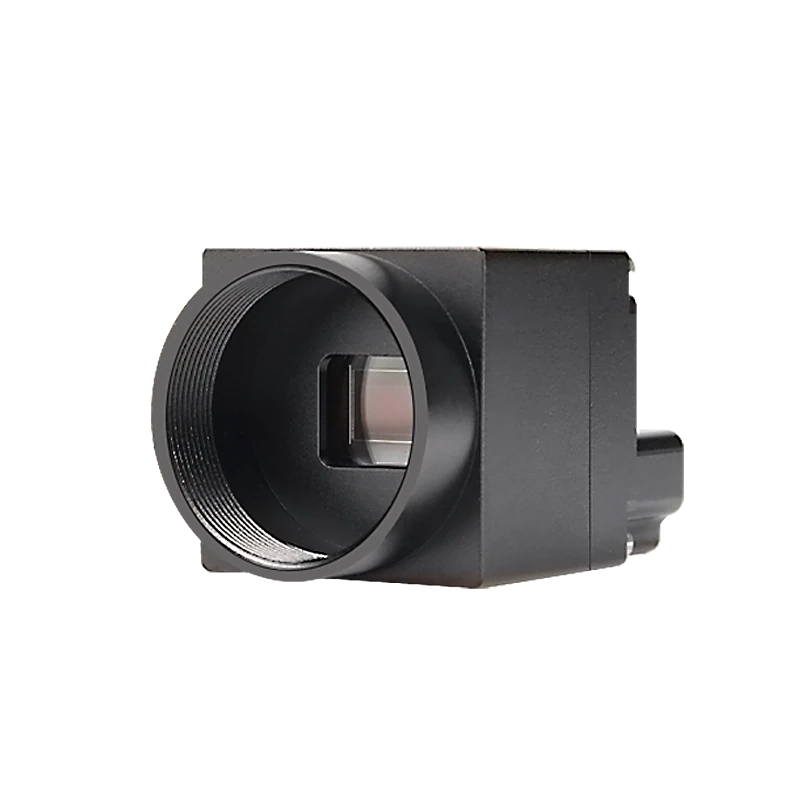

USB2.0 area scan camera (U2 series)
The USB2.0 area scan camera (U2 series) is a range of 4 area scan cameras from LumaSpec Vision, from $209.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 1.3 MP, USB 2.0, Color/Mono, 1.3 MP, USB 2.0, Mono, 5.0 MP, USB 2.0, Color, 5.0 MP, USB 2.0, Color/Mono |
|---|---|
| Interface | USB 2.0 |
| Resolution | Up to 3 MP, 5 MP |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | C-mount |
| Sensor format | 1/2.5" and smaller, 1/2" |
Features
- Support a single PC multiple cameras at the same time stable work.
- Stable and reliable,suitable for vibration applications.
- Supports Windows XP SP3 and above,as well as Linux 32-bit/64-bit operating systems.
- Dimensions:29mm×29mm×29mm.
All 4 models in the USB2.0 area scan camera (U2 series)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-MV-500U2C8-RS-M2 | 5.0 MP, USB 2.0, Color | $209.00 | 4 in stock | View | |
| LS-MV-500U2C/M8-RS | 5.0 MP, USB 2.0, Color/Mono | $209.00 | 5 in stock | View | |
| LS-MV-132U2C/M30-GS | 1.3 MP, USB 2.0, Color/Mono | 1.2 W | $299.00 | 4 in stock | View |
| LS-MV-138U2M30-GS | 1.3 MP, USB 2.0, Mono | $299.00 | 5 in stock | View |
