Area scan cameras · 68 models · from $479.00

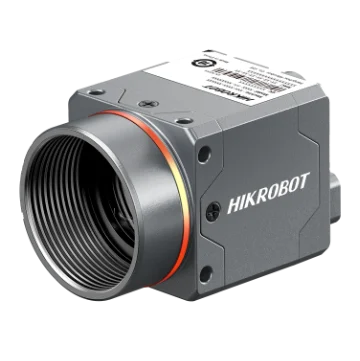

CT Series USB3.0 Area Scan Cameras
The CT Series USB3.0 Area Scan Cameras is a range of 68 area scan cameras from Hikrobot, from $479.00. It comes in 32 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 1.6 MP, USB3, Color, 1.6 MP, USB3, Mono, 2 MP, 1/2.53", USB3, Color, 2 MP, 1/2.53", USB3, Mono, 2 MP, USB3, Color, 2 MP, USB3, Mono, 3.1 MP, 1/1.8", USB3, Color, 3.1 MP, 1/1.8", USB3, Mono, 3.1 MP, USB3, Color, 3.1 MP, USB3, Mono, 5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 5 MP, USB3, Color, 5 MP, USB3, Mono and 16 more |
|---|---|
| Interface | USB3 |
| Resolution | Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | C-mount |
| Sensor format | 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2" |
Features
- The devices with PRO version and MAX version support waterproof connector.
- The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
- The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.
- The device with MAX version integrates lens and light source, enabling lens focusing and light source control.
- Adopts Type-C interface and supports higher transmission bandwidth.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
- PRO and MAX versions feature fully waterproof connectors
- PRO and MAX versions feature precise temperature control for fast thermal equilibrium
All 68 models in the CT Series USB3.0 Area Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CT0MU0016/G/NN/NN | 1.6 MP, 1/2.9", USB3, Mono | $479.00 | 5 in stock | View |
| MV-CT0CU0016/G/NN/NN | 1.6 MP, 1/2.9", USB3, Color | $479.00 | 2 in stock | View |
| MV-CT016G-249UC01-BASE | 1.6 MP, USB3, Color | $479.00 | 4 in stock | View |
| MV-CT016G-249UM01-BASE | 1.6 MP, USB3, Mono | $479.00 | 3 in stock | View |
| MV-CT0MU0020/G/NN/NN | 2 MP, 1/2.53", USB3, Mono | $549.00 | 2 in stock | View |
| MV-CT0CU0020/G/NN/NN | 2 MP, 1/2.53", USB3, Color | $549.00 | 3 in stock | View |
| MV-CT020G-180UC01-BASE | 2 MP, USB3, Color | $549.00 | 2 in stock | View |
| MV-CT020G-180UM01-BASE | 2 MP, USB3, Mono | $549.00 | 3 in stock | View |
| MV-CT0MU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Mono | $689.00 | 4 in stock | View |
| MV-CT0CU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Color | $689.00 | 2 in stock | View |
| MV-CT1MU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Mono | $689.00 | 2 in stock | View |
| MV-CT1CU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Color | $689.00 | 3 in stock | View |
| MV-CT2MU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Mono | $689.00 | 3 in stock | View |
| MV-CT2CU0032/G/NN/NN | 3.1 MP, 1/1.8", USB3, Color | $689.00 | 4 in stock | View |
| MV-CT032G-104UM01-BASE | 3.1 MP, USB3, Mono | $689.00 | 4 in stock | View |
| MV-CT032G-104UC01-BASE | 3.1 MP, USB3, Color | $689.00 | 3 in stock | View |
| MV-CT032G-104UC01-PRO | 3.1 MP, USB3, Color | $689.00 | 2 in stock | View |
| MV-CT032G-104UM01-PRO | 3.1 MP, USB3, Mono | $689.00 | 2 in stock | View |
| MV-CT032G-104UC01-MAX | 3.1 MP, USB3, Color | $689.00 | 3 in stock | View |
| MV-CT032G-104UM01-MAX | 3.1 MP, USB3, Mono | $689.00 | 4 in stock | View |
| MV-CT0MU0050/G/NN/NN | 5 MP, 2/3", USB3, Mono | $859.00 | 5 in stock | View |
| MV-CT0CU0050/G/NN/NN | 5 MP, 2/3", USB3, Color | $859.00 | 3 in stock | View |
| MV-CT1CU0050/G/NN/NN | 5 MP, 2/3", USB3, Color | $859.00 | 4 in stock | View |
| MV-CT1MU0050/G/NN/NN | 5 MP, 2/3", USB3, Mono | $859.00 | 2 in stock | View |
| MV-CT2MU0050/G/NN/NN | 5 MP, 2/3", USB3, Mono | $859.00 | 3 in stock | View |
| MV-CT2CU0050/G/NN/NN | 5 MP, 2/3", USB3, Color | $859.00 | 4 in stock | View |
| MV-CT2MU0050/G/16LC/WN | 5 MP, 2/3", USB3, Mono | $859.00 | 5 in stock | View |
| MV-CT2CU0050/G/16LC/WN | 5 MP, 2/3", USB3, Color | $859.00 | 4 in stock | View |
| MV-CT050G-79UM01-BASE | 5 MP, USB3, Mono | $859.00 | 3 in stock | View |
| MV-CT050G-79UC01-BASE | 5 MP, USB3, Color | $859.00 | 2 in stock | View |
| MV-CT050G-79UC01-PRO | 5 MP, USB3, Color | $859.00 | 4 in stock | View |
| MV-CT050G-79UM01-PRO | 5 MP, USB3, Mono | $859.00 | 2 in stock | View |
| MV-CT050G-79UC01-MAX | 5 MP, USB3, Color | $859.00 | 4 in stock | View |
| MV-CT050G-79UM01-MAX | 5 MP, USB3, Mono | $859.00 | 5 in stock | View |
| MV-CT0MU0060/R/NN/NN | 6.3 MP, 1/1.8", USB3, Mono | $969.00 | 4 in stock | View |
| MV-CT0CU0060/R/NN/NN | 6.3 MP, 1/1.8", USB3, Color | $969.00 | 3 in stock | View |
| MV-CT060R-60UC01-BASE | 6.3 MP, USB3, Color | $969.00 | 2 in stock | View |
| MV-CT060R-60UM01-BASE | 6.3 MP, USB3, Mono | $969.00 | 4 in stock | View |
| MV-CT0MU0089/G/NN/NN | 8.8 MP, 1", USB3, Mono | $1,149.00 | 4 in stock | View |
| MV-CT0CU0089/G/NN/NN | 8.8 MP, 1", USB3, Color | $1,149.00 | 5 in stock | View |
| MV-CT1MU0089/G/NN/NN | 8.8 MP, 1", USB3, Mono | $1,149.00 | 4 in stock | View |
| MV-CT1CU0089/G/NN/NN | 8.8 MP, 1", USB3, Color | $1,149.00 | 5 in stock | View |
| MV-CT2MU0089/G/NN/NN | 8.8 MP, 1", USB3, Mono | $1,149.00 | 5 in stock | View |
| MV-CT2CU0089/G/NN/NN | 8.8 MP, 1", USB3, Color | $1,149.00 | 3 in stock | View |
| MV-CT089G-42UM01-BASE | 8.8 MP, USB3, Mono | $1,149.00 | 4 in stock | View |
| MV-CT089G-42UC01-BASE | 8.8 MP, USB3, Color | $1,149.00 | 2 in stock | View |
| MV-CT089G-42UM01-MAX | 8.8 MP, USB3, Mono | $1,149.00 | 3 in stock | View |
| MV-CT089G-42UM01-PRO | 8.8 MP, USB3, Mono | $1,149.00 | 3 in stock | View |
| MV-CT089G-42UC01-MAX | 8.8 MP, USB3, Color | $1,149.00 | 3 in stock | View |
| MV-CT089G-42UC01-PRO | 8.8 MP, USB3, Color | $1,149.00 | 3 in stock | View |
| MV-CT0MU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Mono | $1,349.00 | 3 in stock | View |
| MV-CT0CU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Color | $1,349.00 | 4 in stock | View |
| MV-CT1MU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Mono | $1,349.00 | 5 in stock | View |
| MV-CT1CU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Color | $1,349.00 | 2 in stock | View |
| MV-CT2MU0120/G/16LC/WN | 12.3 MP, 1.1", USB3, Mono | $1,349.00 | 3 in stock | View |
| MV-CT2CU0120/G/16LC/WN | 12.3 MP, 1.1", USB3, Color | $1,349.00 | 2 in stock | View |
| MV-CT2MU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Mono | $1,349.00 | 2 in stock | View |
| MV-CT2CU0120/G/NN/NN | 12.3 MP, 1.1", USB3, Color | $1,349.00 | 5 in stock | View |
| MV-CT120G-30UM01-BASE | 12.3 MP, USB3, Mono | $1,349.00 | 5 in stock | View |
| MV-CT120G-30UC01-BASE | 12.3 MP, USB3, Color | $1,349.00 | 4 in stock | View |
| MV-CT120G-30UM01-PRO | 12.3 MP, USB3, Mono | $1,349.00 | 5 in stock | View |
| MV-CT120G-30UC01-PRO | 12.3 MP, USB3, Color | $1,349.00 | 3 in stock | View |
| MV-CT120G-30UM01-MAX | 12.3 MP, USB3, Mono | $1,349.00 | 3 in stock | View |
| MV-CT120G-30UC01-MAX | 12.3 MP, USB3, Color | $1,349.00 | 3 in stock | View |
| MV-CT0MU0200/R/NN/NN | 20 MP, 1", USB3, Mono | $1,629.00 | 5 in stock | View |
| MV-CT0CU0200/R/NN/NN | 20 MP, 1", USB3, Color | $1,629.00 | 3 in stock | View |
| MV-CT200R-19UC01-BASE | 20 MP, USB3, Color | $1,629.00 | 3 in stock | View |
| MV-CT200R-19UM01-BASE | 20 MP, USB3, Mono | $1,629.00 | 5 in stock | View |
