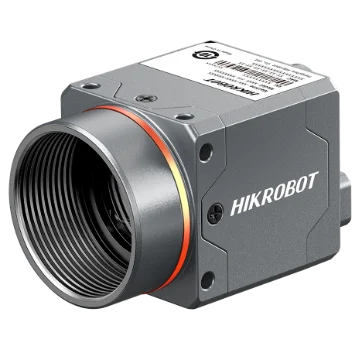

Hikrobot MV-CT0CU0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., USB3.0, Color, BASE
Model MV-CT0CU0089/G/NN/NN
Hikrobot MV-CT0CU0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., USB3.0, Color, BASE. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
Datasheet (PDF) - MV-CT0CU0089/G/NN/NNUser manual (PDF) - MV-CT0CU0089/G/NN/NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CT0CU0089/G/NN/NN
Features
- The devices with PRO version and MAX version support waterproof connector.
- The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
- The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.
- The device with MAX version integrates lens and light source, enabling lens focusing and light source control.
- Adopts Type-C interface and supports higher transmission bandwidth.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CT0CU0089/G/NN/NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1" |
| Resolution | 4096 × 2160 |
| Max. frame rate | 42 fps @ 4096 × 2160 Bayer GB 8 |
| Dynamic range | 67.4 dB |
| SNR | 43.9 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled |
| Pixel format | Mono 8, ; Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Mono/color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Data interface type | Type-C interface |
| Control interface | Not supported |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 72 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
