Area scan cameras · 15 models · from $289.00

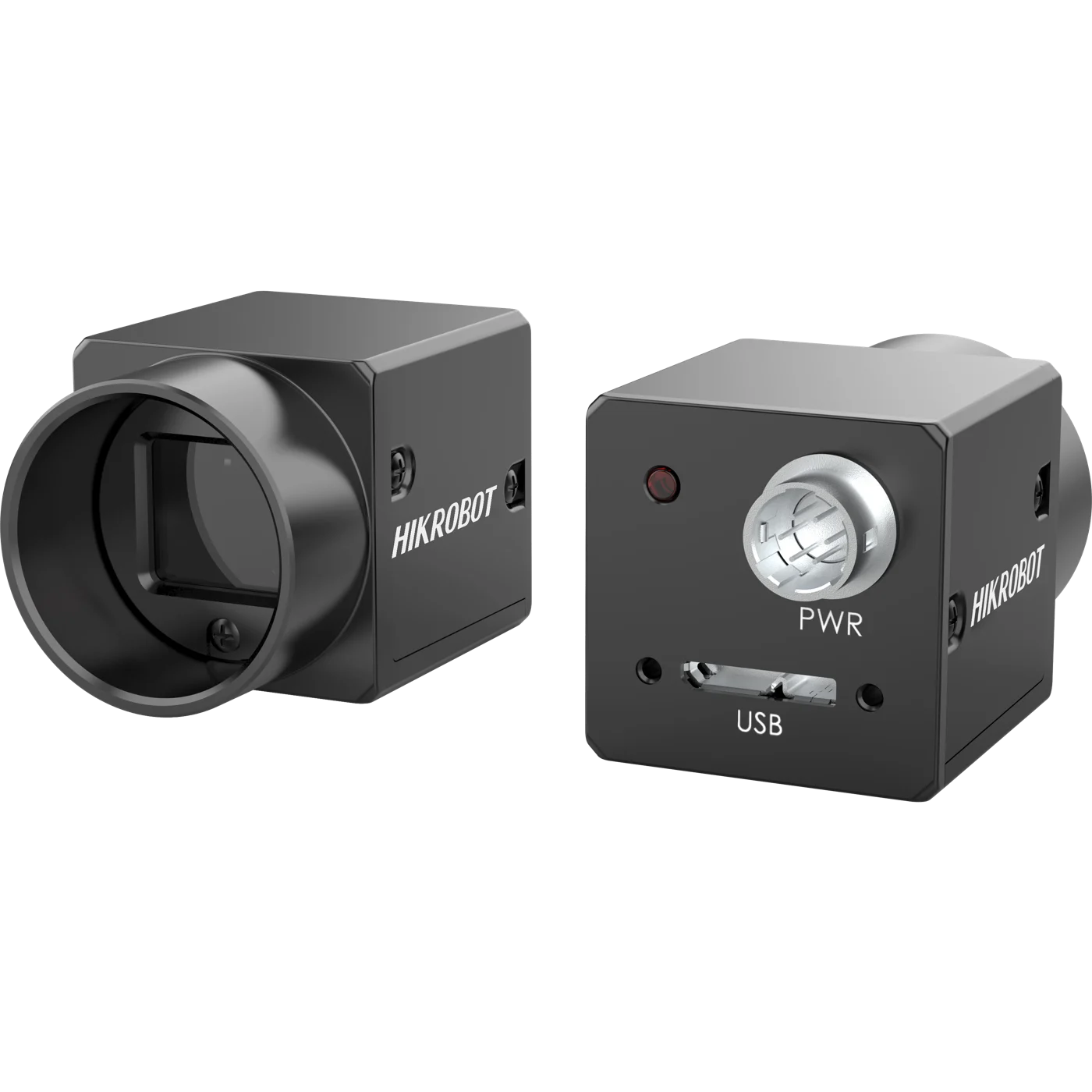

CA Series USB3.0 Area Scan Cameras
The CA Series USB3.0 Area Scan Cameras is a range of 15 area scan cameras from Hikrobot, from $289.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.3 MP, 1/4", USB3, Color, 0.4 MP, 1/2.9", USB3, Color, 0.4 MP, 1/2.9", USB3, Mono, 1.3 MP, 1/2", USB3, Color, 1.3 MP, 1/2", USB3, Mono, 1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 2 MP, 1/1.7", USB3, Color, 2 MP, 1/1.7", USB3, Mono, 2.3 MP, 1/1.2", USB3, Color, 2.3 MP, 1/1.2", USB3, Mono, 5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 5.3 MP, 1", USB3, Mono |
|---|---|
| Interface | USB3 |
| Resolution | Up to 3 MP, 5 MP |
| Shutter | Global |
| Colour | Color, Mono |
| Lens mount | C-mount |
| Sensor format | 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1" |
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
All 15 models in the CA Series USB3.0 Area Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CA004-10UM | 0.4 MP, 1/2.9", USB3, Mono | $289.00 quote | 4 in stock | View |
| MV-CA004-10UC | 0.4 MP, 1/2.9", USB3, Color | $289.00 quote | 3 in stock | View |
| MV-CA003-21UC | 0.3 MP, 1/4", USB3, Color | $329.00 quote | 3 in stock | View |
| MV-CA013-21UM | 1.3 MP, 1/2", USB3, Mono | $469.00 quote | 4 in stock | View |
| MV-CA013-A0UM | 1.3 MP, 1/2", USB3, Mono | $469.00 quote | 5 in stock | View |
| MV-CA013-A0UC | 1.3 MP, 1/2", USB3, Color | $469.00 quote | 5 in stock | View |
| MV-CA016-10UM | 1.6 MP, 1/2.9", USB3, Mono | $509.00 quote | 4 in stock | View |
| MV-CA016-10UC | 1.6 MP, 1/2.9", USB3, Color | $509.00 quote | 2 in stock | View |
| MV-CA050-20UM | 5.3 MP, 1", USB3, Mono | $519.00 quote | 2 in stock | View |
| MV-CA020-10UM | 2 MP, 1/1.7", USB3, Mono | $579.00 quote | 2 in stock | View |
| MV-CA020-10UC | 2 MP, 1/1.7", USB3, Color | $579.00 quote | 5 in stock | View |
| MV-CA023-10UM | 2.3 MP, 1/1.2", USB3, Mono | $619.00 quote | 3 in stock | View |
| MV-CA023-10UC | 2.3 MP, 1/1.2", USB3, Color | $619.00 quote | 4 in stock | View |
| MV-CA050-12UM | 5 MP, 2/3", USB3, Mono | $909.00 quote | 2 in stock | View |
| MV-CA050-12UC | 5 MP, 2/3", USB3, Color | $909.00 quote | 3 in stock | View |
