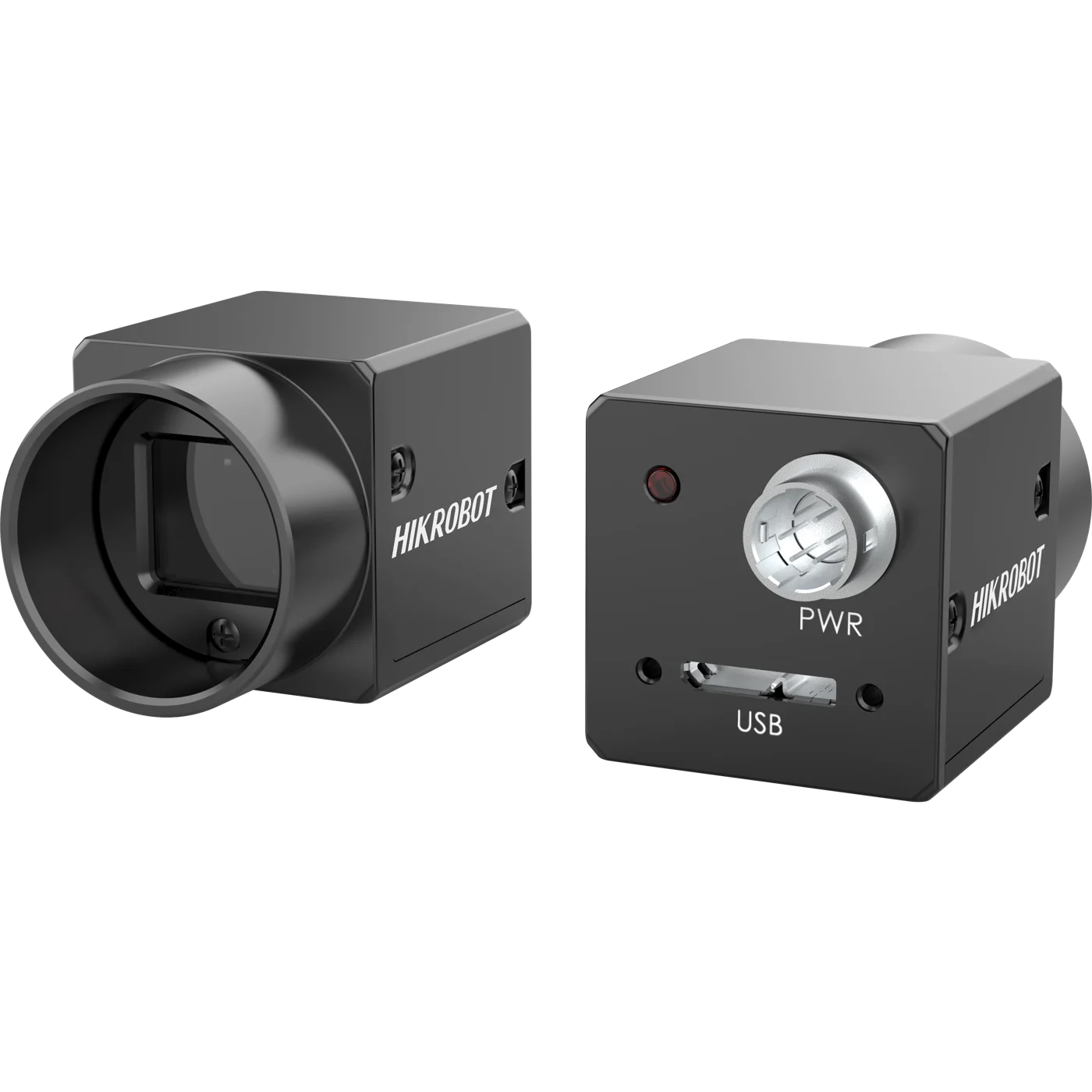

Hikrobot MV-CA020-10UM 2MP Area Scan Camera, USB3, IMX430, Mono
Model MV-CA020-10UM
Hikrobot MV-CA020-10UM 2MP Area Scan Camera, USB3, IMX430, Mono. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.
Datasheet (PDF) - MV-CA020-10UMUser manual (PDF) - MV-CA020-10UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CA020-10UM
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CA020-10UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX430 |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 89.1 fps @ 1624 × 1240 |
| Dynamic range | 75.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 1 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Not support |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 3.2 W@5 VDC; (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
