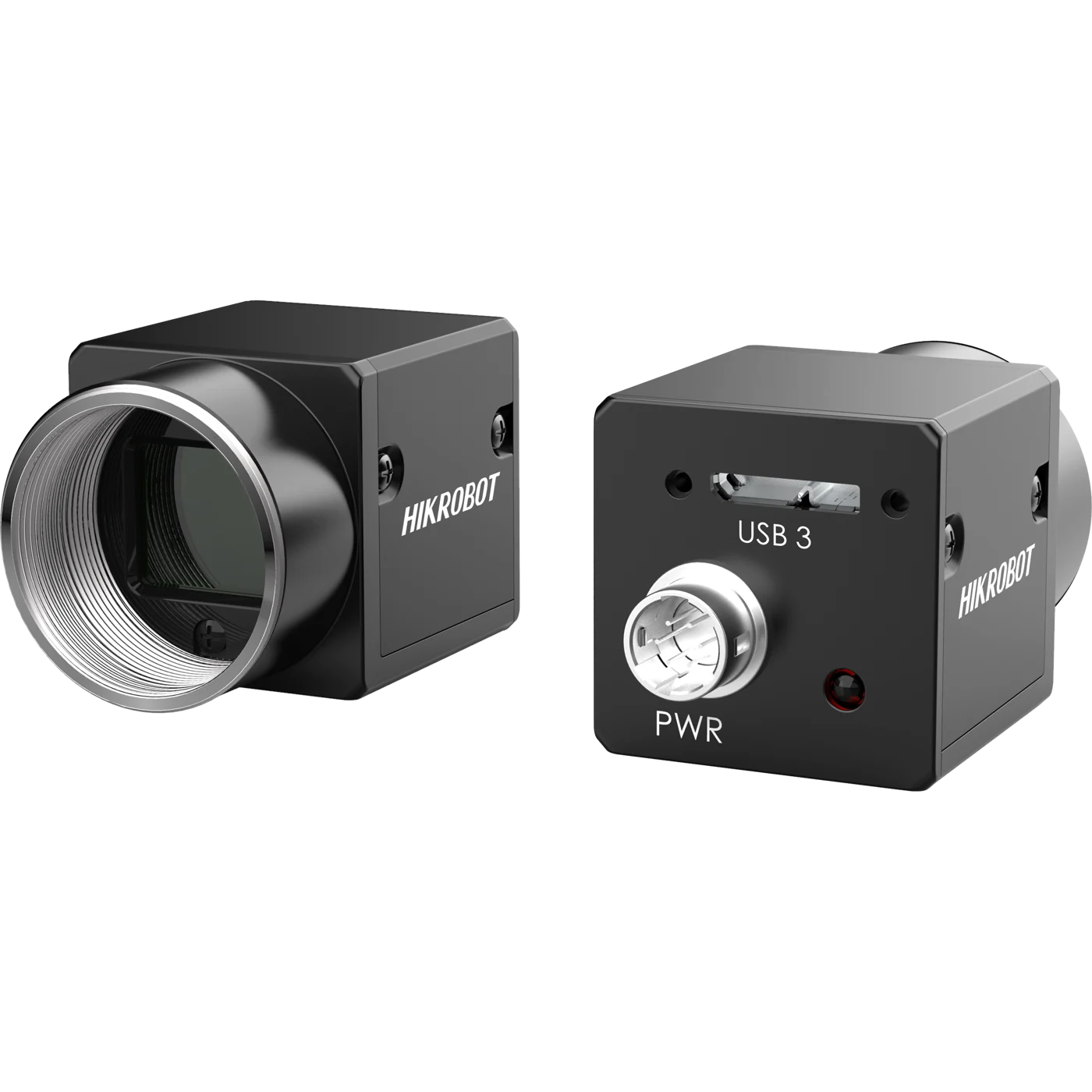

Hikrobot MV-CA016-10UC 1.6MP Area Scan Camera, USB3, IMX273, Color

Name: Hikrobot MV-CA016-10UC 1.6MP Area Scan Camera, USB3, IMX273, Color
Brand: Hikrobot
SKU: MV-CA016-10UC

Model MV-CA016-10UC

Hikrobot MV-CA016-10UC 1.6MP Area Scan Camera, USB3, IMX273, Color. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.

Datasheet (PDF) - MV-CA016-10UC User manual (PDF) - MV-CA016-10UC CAD: 3D STEP + 2D DXF (ZIP) - MV-CA016-10UC

Features

Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
Supports hardware triggering, software triggering and free run mode.
Adopts M2 screw holes for securing cable that connects USB3.0 interface.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Specifications

Model	MV-CA016-10UC
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	249.1 fps @ 1440 × 1080 mono 8
Dynamic range	71 dB
SNR	40 dB
Gain	0 dB to 17 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Color
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422_YUYV_Packed, YUV 422 Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply	12 VDC, supports USB 3.0 power supply
Power consumption	Typ. 2.8 W @ 5 VDC (USB3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.14" × 1.14" × 1.18")
Weight	Approx. 56 g (0.12 lb.)
Ingress protection	IP30 (under correct lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software compatible with USB3 Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.18 kg
