Area scan cameras · 10 models · from $1,769.00

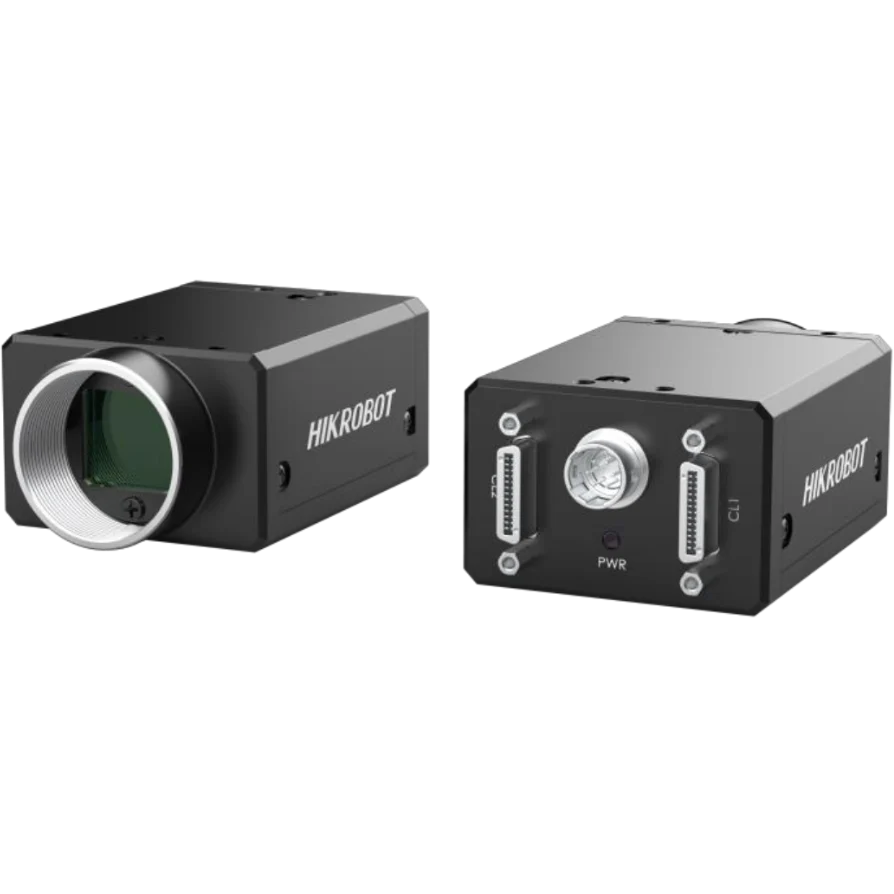

CH Series Camera Link Area Scan Cameras
The CH Series Camera Link Area Scan Cameras is a range of 10 area scan cameras from Hikrobot, from $1,769.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4.2 MP, 1", Camera Link, Mono, 5 MP, 2/3", Camera Link, Color, 5 MP, 2/3", Camera Link, Mono, 12.3 MP, 1.1", Camera Link, Color, 12.3 MP, 1.1", Camera Link, Mono, 26.2 MP, Camera Link, Mono, 101.8 MP, Camera Link, Color, 101.8 MP, Camera Link, Mono |
|---|---|
| Interface | Camera Link |
| Resolution | 5 MP, 12 MP, 29 MP + |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | M58, M72, C-mount |
| Sensor format | 2/3", 1", 1.1" - 1.2", APS-H / Full frame, Medium / large |
Features
- Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image.
- Resolution of 2432 × 2048 and pixel size of 3.45 μm × 3.45 μm.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
All 10 models in the CH Series Camera Link Area Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CH050-10CM | 5 MP, 2/3", Camera Link, Mono | $1,769.00 | 3 in stock | View |
| MV-CH050-10CC | 5 MP, 2/3", Camera Link, Color | $1,769.00 | 2 in stock | View |
| MV-CH040-A0CM | 4.2 MP, 1", Camera Link, Mono | $2,229.00 | 2 in stock | View |
| MV-CH120-10CM | 12.3 MP, 1.1", Camera Link, Mono | $3,809.00 quote | 3 in stock | View |
| MV-CH120-10CC | 12.3 MP, 1.1", Camera Link, Color | $3,809.00 quote | 3 in stock | View |
| MV-CH120-11CM | 12.3 MP, 1.1", Camera Link, Mono | $3,809.00 quote | 4 in stock | View |
| MV-CH250-20CM-M58S-NN | 26.2 MP, Camera Link, Mono | $5,559.00 quote | 2 in stock | View |
| MV-CH1010-10CM-M72-TF | 101.8 MP, Camera Link, Mono | $10,959.00 quote | 2 in stock | View |
| MV-CH1010-10CC-M72-TF | 101.8 MP, Camera Link, Color | $10,959.00 quote | 5 in stock | View |
| MV-CH1010-10CM-M72-NF | 101.8 MP, Camera Link, Mono | $23,329.00 quote | 3 in stock | View |
