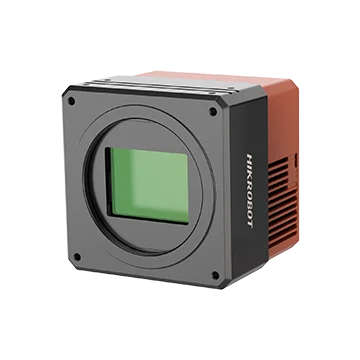

Hikrobot MV-CH1010-10CC-M72-TF 101 MP Camera Link area scan camera, IMX461, Color, M72 connector, TEC

Name: Hikrobot MV-CH1010-10CC-M72-TF 101 MP Camera Link area scan camera, IMX461, Color, M72 connector, TEC
Brand: Hikrobot
SKU: MV-CH1010-10CC-M72-TF

Model MV-CH1010-10CC-M72-TF

Hikrobot MV-CH1010-10CC-M72-TF 101 MP Camera Link area scan camera, IMX461, Color, M72 connector, TEC. Auto or manual gain and exposure time; manual LUT and Gamma correction FFC correction eliminates pixel-to-pixel response differences

Datasheet (PDF, Chinese) - MV-CH1010-10CC-M72-TF User manual (PDF, Chinese) - MV-CH1010-10CC-M72-TF CAD: 3D STEP + 2D DXF (ZIP) - MV-CH1010-10CC-M72-TF

Features

Auto or manual gain and exposure time; manual LUT and Gamma correction
FFC correction eliminates pixel-to-pixel response differences
Optional TEC cooling supports exposure times up to 10 s, maintaining image quality in long exposures
16-bit ADC output for high sampling precision and wide dynamic range
Base, Medium, Full and 80-bit configuration modes
Compliant with the Camera Link V2.0 protocol and GenICam standard for seamless connection to third-party software platforms

Specifications

Model	MV-CH1010-10CC-M72-TF
Brand	Hikrobot
Sensor type	CMOS, rolling shutter
Sensor model	Sony IMX461
Pixel size	3.76 μm ×3.76 μm
Sensor size	55 mm
Resolution	11648 × 8740
Max. frame rate	8.1 fps @11648 × 8740 Bayer RG 8
Configuration mode	Base, Medium, Full, 80-bit
Tap geometry	2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Channel	2/4/8/10 Taps
Pixel clock	85 MHz, 70 MHz, 60 MHz, 40 MHz
Dynamic range	78 dB
SNR	45 dB
Gain	0 dB ~ 36 dB
Exposure time	14 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
Mono/color	Color
Pixel format	ADC 12bit mode: Bayer RG 8/10/12; ADC 16bit mode: Bayer RG 8/10/12/16
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Data interface	Camera Link with SDR interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.; Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supply	24 VDC
Power consumption	Non-cooled mode: 12.5 W@24 VDC; Cooled mode: 49.7 W@24 VDC
Lens mount	M72*0.75, flange back length 19.55 mm
Dimension	100 mm × 100 mm × 87.2 mm
Weight	Camera with fan: Approx. 790 g (1.7 lb.); Camera with TEC: Approx. 1.7 kg (3.7 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or frame grabber software meeting with GenlCam Protocol
Operating system	Windows 7/10/11(32/64bits)
Compatibility	Camera Link V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	1.21 kg
