Hikrobot MV-CH250-20CM-M58S-NN 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan
Model MV-CH250-20CM-M58S-NN

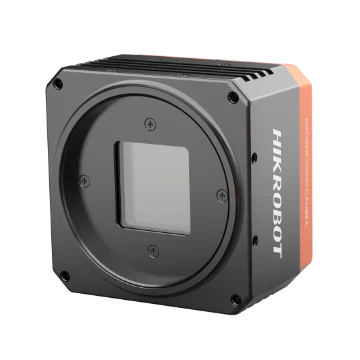

Hikrobot MV-CH250-20CM-M58S-NN 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan. Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm. Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
Datasheet (PDF) - MV-CH250-20CM-M58S-NNUser manual (PDF) - MV-CH250-20CM-M58S-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-20CM-M58S-NN
Features
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
- Supports configuration modes of Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
Specifications
| Model | MV-CH250-20CM-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Configuration mode | Full, 80-bit |
| Tap geometry | 8X_1Y, 10X_1Y |
| Tap number | 8 Taps, 10 Taps |
| Max. frame rate | 31.3 fps @ 5120 × 5120 |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 59 dB |
| SNR | 41 dB |
| Gain | 0 dB to 32 dB |
| Exposure time | 45 μs to 10 sec |
| Mono | Mono |
| Pixel format | Mono 8 |
| Exposure mode | Off/Once/Continuous exposure mode |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 9.4 W @ 24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.63 kg |
