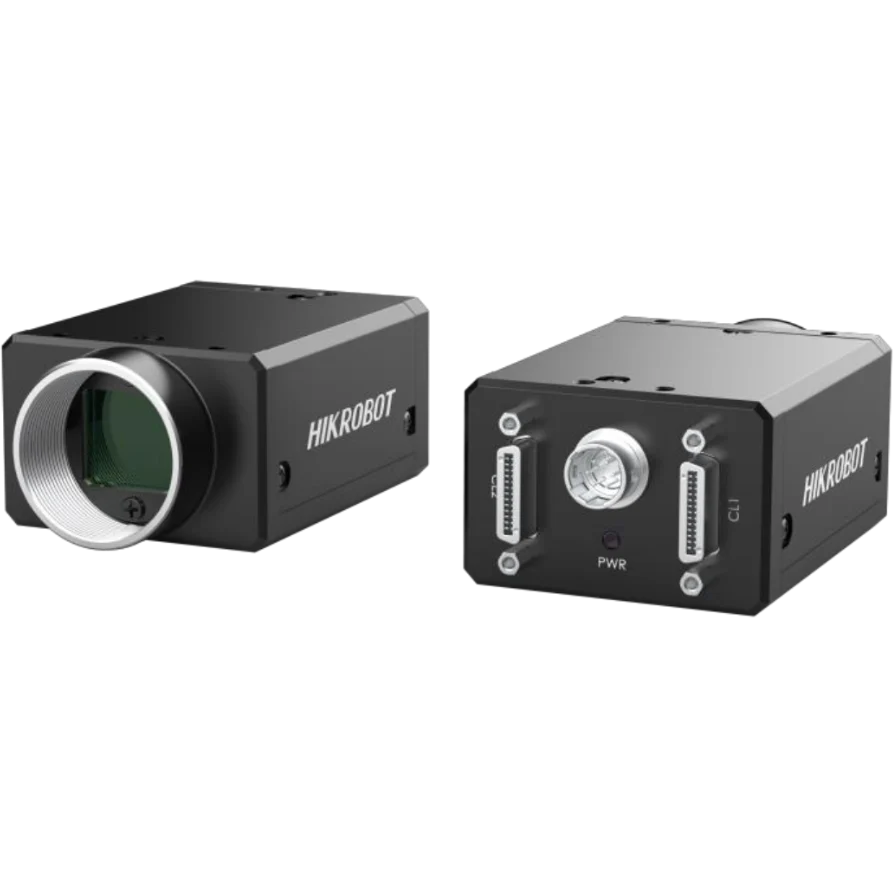

Hikrobot MV-CH040-A0CM 4MP Area Scan Camera, Camera Link
Model MV-CH040-A0CM
Hikrobot MV-CH040-A0CM 4MP Area Scan Camera, Camera Link. Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc. Supports customized ROI and horizontal and vertical reverse image output.
Features
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
- Compatible with Camera Link V2.0 Protocol and GenlCam Standard.
Specifications
| Model | MV-CH040-A0CM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Pixel size | 5.5 μm × 5.5 μm |
| Sensor size | 1" |
| Resolution | 2048 × 2048 |
| Max. frame rate | 180 fps @2040 × 2048 Mono 8 |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 59.7 dB |
| SNR | 39.6 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 28 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR Connector |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).; Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |
| Power supply | 9 VDC to 24 VDC, supports PoCL |
| Power consumption | Typ. 3.6 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
