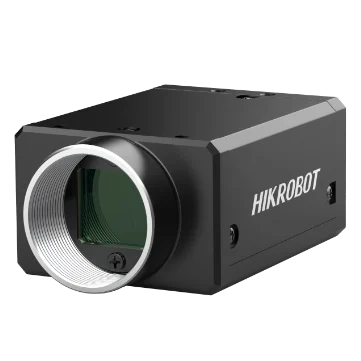

Hikrobot MV-CH120-10CM 12MP Area Scan Camera, Camera Link, IMX253, Mono
Model MV-CH120-10CM
Hikrobot MV-CH120-10CM 12MP Area Scan Camera, Camera Link, IMX253, Mono. Supports auto or manual adjustment of gain exposure time, LUT and Gamma correction. Supports hardware trigger, software trigger and free run mode, and supports camera triggering via Camera Link frame grabber.
Datasheet (PDF) - MV-CH120-10CMUser manual (PDF) - MV-CH120-10CMCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-10CM
Features
- Supports auto or manual adjustment of gain exposure time, LUT and Gamma correction.
- Supports hardware trigger, software trigger and free run mode, and supports camera triggering via Camera Link frame grabber.
- Supports customized ROI, and horizontal and vertical reverse image output.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Compatible with Camera Link V2.0 Protocol, GenICam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CH120-10CM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX253 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit) |
| Max. frame rate | 50.9 fps @ 4096 × 3000 Mono 8 (Base/Medium/Full); 69.8 fps @ 3840 × 3000 Mono 8 (80-bit) |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 71.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 1 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 4.51 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH 80% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
