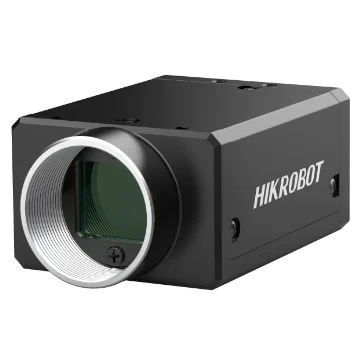

Hikrobot MV-CH120-11CM 12 MP Camera Link area scan camera, IMX304, Mono
Model MV-CH120-11CM
Hikrobot MV-CH120-11CM 12 MP Camera Link area scan camera, IMX304, Mono. Auto or manual gain and exposure time; manual LUT and Gamma correction Custom ROI with horizontal and vertical mirroring
Datasheet (PDF, Chinese) - MV-CH120-11CMUser manual (PDF, Chinese) - MV-CH120-11CMCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-11CM
Features
- Auto or manual gain and exposure time; manual LUT and Gamma correction
- Custom ROI with horizontal and vertical mirroring
- Hardware trigger, software trigger and free-run modes; the camera can be triggered via a Camera Link frame grabber
- Base and Medium configuration modes
- Compliant with the Camera Link protocol and GenICam standard for seamless connection to third-party software platforms
Specifications
| Model | MV-CH120-11CM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX304 |
| Pixel size | 3.45 μm×3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 23.4 fps @4096 × 3000 Mono 8 |
| Configuration mode | Base, Medium |
| Tap geometry | 1X2_1Y, 1X4_1Y |
| Channel | 2/4 Taps |
| Pixel clock | 40 MHz, 66 MHz, 85 MHz |
| Dynamic range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | Ultra-short exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | 1×1 supported, 1×2, 2×1, 2×2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9~24 VDC |
| Power consumption | 3.48 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 44 mm × 29 mm × 59 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | Windows XP/7/10/11(32/64bits) |
| Compatibility | Camera Link V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
