Area scan cameras · 3 models · from $5,059.00

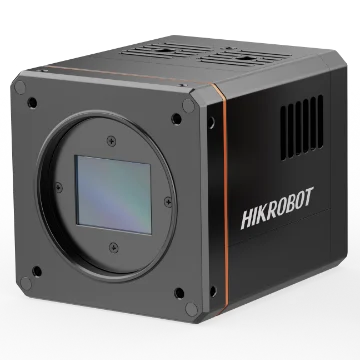

CH Series XoFLink Area Scan Cameras
The CH Series XoFLink Area Scan Cameras is a range of 3 area scan cameras from Hikrobot, from $5,059.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 21 MP, XoFLink, Mono, 245.8 MP, XoFLink, Color, 245.8 MP, XoFLink, Mono |
|---|---|
| Interface | XoFLink |
| Resolution | 16-25 MP, 29 MP + |
| Shutter | Global, Rolling |
| Colour | Color, Mono |
| Lens mount | M58, M72 |
| Sensor format | 4/3" - APS-C, Medium / large |
Features
- Resolution of 5120 × 4096, pixel size of 4.5 μm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports ISP functions such as Binning and multi-group polling for LSC.
- Supports data transmission through two 50 Gbps fiber ports.
- Features an M58 mount; can be adapted to F-mount lenses via an adapter ring.
- Resolution 19200 × 12800, pixel size 2.81 µm
- ISP functions including binning, multi-set LSC cycling and FFC
- QSFP+ fiber port: up to 150 m with optical modules
All 3 models in the CH Series XoFLink Area Scan Cameras
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| MV-CH210-90Q2M-M58S-NF | 21 MP, XoFLink, Mono | $5,059.00 quote | 5 in stock | View |
| MV-CH2450-10Q1M-M72-TF | 245.8 MP, XoFLink, Mono | $12,279.00 quote | 2 in stock | View |
| MV-CH2450-10Q1C-M72-TF | 245.8 MP, XoFLink, Color | $12,279.00 quote | 2 in stock | View |
