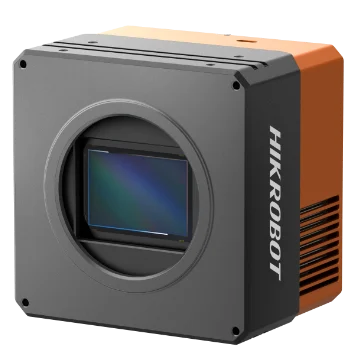

Hikrobot MV-CH2450-10Q1C-M72-TF 245 MP fiber-interface area scan camera, Single QSFP+, Color, M72 lens mount, With TEC
Model MV-CH2450-10Q1C-M72-TF
Hikrobot MV-CH2450-10Q1C-M72-TF 245 MP fiber-interface area scan camera, Single QSFP+, Color, M72 lens mount, With TEC. Resolution 19200 × 12800, pixel size 2.81 µm ISP functions including binning, multi-set LSC cycling and FFC
Datasheet (PDF, Chinese) - MV-CH2450-10Q1C-M72-TFUser manual (PDF, Chinese) - MV-CH2450-10Q1C-M72-TFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH2450-10Q1C-M72-TF
Features
- Resolution 19200 × 12800, pixel size 2.81 µm
- ISP functions including binning, multi-set LSC cycling and FFC
- QSFP+ fiber port: up to 150 m with optical modules
- TEC cooling greatly lowers sensor temperature to preserve image quality in long exposures
- Complies with the proprietary XoFLink protocol and the GenICam standard
Specifications
| Model | MV-CH2450-10Q1C-M72-TF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX811 |
| Pixel size | 2.81 μm × 2.81 μm |
| Sensor size | 64.84 mm |
| Resolution | 19200 × 12800 |
| Max. frame rate | 12.4 fps@19200 × 12800 Bayer RG 8 |
| Dynamic range | 72.1 dB |
| SNR | 44.1 dB |
| Gain | 0 ~ 24 dB |
| Exposure time | 142 μs ~ 30 sec |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Rolling and Global Reset mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer RG 8/10/12; RGB 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | Camera side: 1 × QSFP+ port |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1. |
| Power supply | 24 VDC |
| Power consumption | Non-cooled mode: 19.9 W@24 VDC; Cooled mode: 35.3 W@24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 120 mm × 120 mm × 89 mm |
| Weight | Approx. 2.5 kg (5.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11 32/64bits |
| Compatibility | XoFLink, GenICam |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 3.60 kg |
