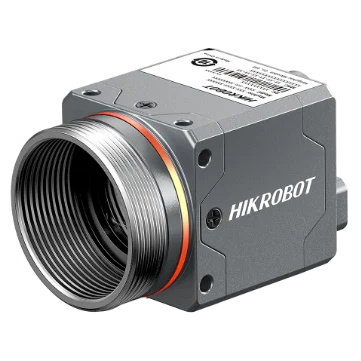

Hikrobot MV-CT089G-42UC01-PRO 8.9 MP USB 3.0 area scan camera, Gen 3, Color, PRO
Model MV-CT089G-42UC01-PRO
Hikrobot MV-CT089G-42UC01-PRO 8.9 MP USB 3.0 area scan camera, Gen 3, Color, PRO. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium
Datasheet (PDF, Chinese) - MV-CT089G-42UC01-PROUser manual (PDF, Chinese) - MV-CT089G-42UC01-PROCAD: 3D STEP + 2D DXF (ZIP) - MV-CT089G-42UC01-PRO
Features
- PRO and MAX versions feature fully waterproof connectors
- PRO and MAX versions feature precise temperature control for fast thermal equilibrium
- PRO color version features multispectral fusion with automatic color correction
- MAX version integrates lens and light control: lens focusing and lighting control in one unit
- Type-C interface for higher transmission bandwidth
- Compatible with USB3 Vision and the GenICam standard for seamless integration with third-party software
Specifications
| Model | MV-CT089G-42UC01-PRO |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1” |
| Resolution | 4096 × 2160 |
| Max. frame rate | 42 fps @4096 × 2160 Bayer GB 8 |
| Dynamic range | 67.4 dB |
| SNR | 43.9 dB |
| Gain | 0 dB ~ 12 dB |
| Exposure time | 20 μs ~ 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Data interface type | Type-C port |
| Console interface | Not supported |
| Digital I/O | 8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply and PoE |
| Power consumption | 2.1 W @ 5 VDC (USB 3.0 powered, fast thermal balance off) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 70 g |
| Ingress protection | IP67 (with lens, , cover and cables properly installed) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
