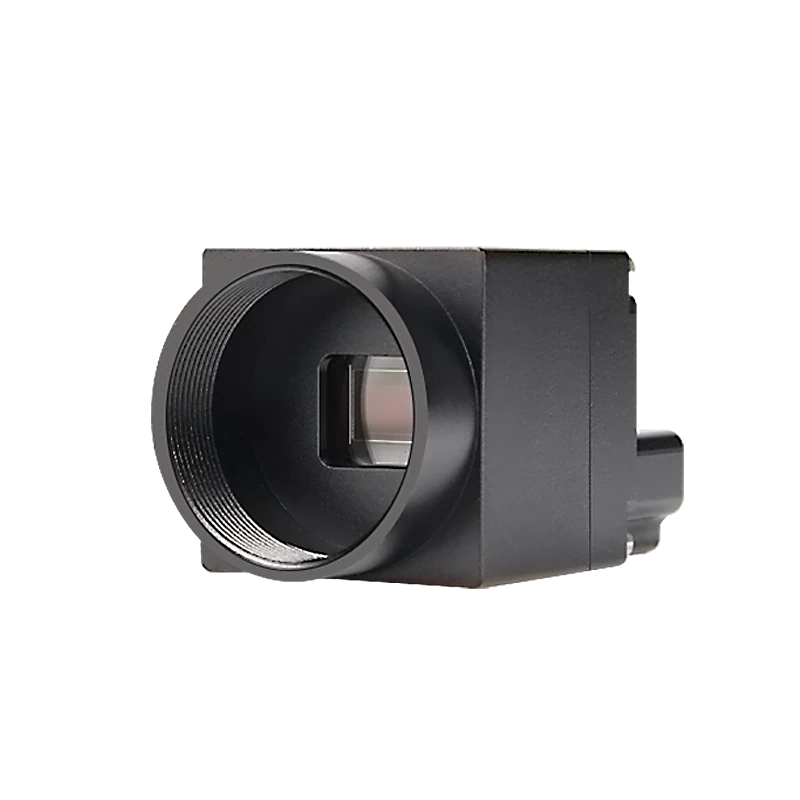

USB2.0 area scan camera (U2 series), 1.3 MP, USB3, Color/Mono (LS-MV-132U2C/M30-GS)
Model LS-MV-132U2C/M30-GS
This series of USB2.0 area scan cameras includes color and monochrome, global and rolling shutter.Extremely cost-effective,ultra-low power consumption.
Features
- Support a single PC multiple cameras at the same time stable work.
- Stable and reliable,suitable for vibration applications.
- Supports Windows XP SP3 and above,as well as Linux 32-bit/64-bit operating systems.
- Dimensions:29mm×29mm×29mm.
Specifications
| Model | LS-MV-132U2C/M30-GS |
|---|---|
| Target size | 1/2.7" |
| Resolution | 1280*1024 |
| Pixel size | 4.0um |
| Shutter | Global |
| Frame rate | 30FPS |
| Data interface | USB2.0 |
| Lens Mount | C |
| Color/Mono | Color/Mono |
| Sensor Type | Global Shutter |
| Resolution (product page) | 1280X1024 |
| Optical Size | 1/2.7" |
| Mono/Color | Color/Mono |
| Max Frame Rate | 30FPS |
| Gain | Gain:1-4times,step size:0.125times |
| Dynamic range | 58db |
| Exposure Time | 2us-128ms |
| Sensitivity | 6V/Lux.S |
| Output Image Format | MONO8RAW8MONO16 |
| Trigger Mode | Software Trigger |
| SUM | 640x512 30FPS |
| Spectral response | Color:390nm-650nm, Mono:390nm-1050nm |
| Power supply | USB5V power supply |
| Typical Power Consumption | <1.2W |
| Lens Interface | C-Mount |
| Photo support formats | RAWBMPJPEGPNG |
| SNR | Color:34.3db, Mono:38.4db |
| Dimension | 29mmx29mmx29mm |
| Weight | <42g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB2.0Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |
| Mono / colour | Color/Mono |
| Voltage | USB5V power supply |
