Area scan cameras

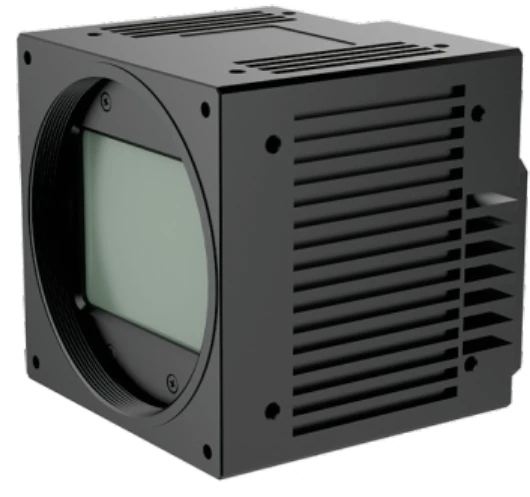

10 GigE area scan camera (MV-...-10G), 46 MP, 10GigE, Color/Mono (LS-MV-4701C/M-10G)
Model LS-MV-4701C/M-10G
10 Gigabit network area scan cameras from 0.5MP to 65MP (selection table up to 100MP) for high frame rate and high resolution requirements. Widely used in PCB, screen detection, lithium battery and railway.
Features
- Reserved fan interface to control camera temperature
- 0.5MP to 100MP pixels with a maximum frame rate of 1594FPS
- Standard 10 Gigabit network interface; stable communication over Cat6 (super six) network cable
- Cost greatly reduced compared with CameraLink interface plus capture card
- Transmission distance up to 100 meters, backward compatible with Gigabit Ethernet
- Effective bandwidth 1200MByte, 10 times Gigabit network, greatly reducing image transmission time and delay
- Supports GigE Vision and GenICam, same SDK as the Gigabit network camera, shortening development cycle
Specifications
| Model | LS-MV-4701C/M-10G |
|---|---|
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| User-defined data area | 2K Bytes |
| GPIO | 2 inputs and 2 outputs, 1 configurable input and output, support trigger and flash sync mode |
| Power | <12W |
| Data interface | 10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G |
| Vision standard | GigE Vision V1.2, GenICam |
| Filter | Black and white cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut filter as standard |
| Working temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Pixel | 47MP |
| Sensor type | CMOS |
| Shutter method | Rolling |
| Maximum resolution | 8240X5628 |
| Pixel size | 2.315μm |
| Frame rate (FPS) | 24 |
| Target size | 1.4" |
| Minimum exposure | 0.0072ms |
| Sensor model | IMX492 |
| Colour | Color/Mono |
| Resolution@frame rate | 8240×5628@24FPS |
| Pixel size (detail) | 2.315μm×2.315μm |
| Pixel bit depth | 12bit |
| Sensitivity | 87.69mV 1/30s |
| Maximum gain (multiple) | 22 |
| Exposure time range (ms) | 0.0072-5142.9 |
| Frame buffer | 1GB |
| Video output format | Color: Bayer 8/12bit; Mono: Mono 8/12bit |
| Lens mount | M58 (F-port adapter ring optional) |
| Power supply | 12V |
| Dimensions | 64×64×59.5mm (without lens mount and rear shell interface) |
| Weight | <550g |
| Sensor format | 1.4" |
| Mono / colour | Color/Mono |
| Voltage | 12V |
Applications
- PCB
- Screen detection
- Lithium battery
- Railway
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 10 GigE area scan camera (MV-...-10G) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MV-51C/M-10G | 0.5 MP, 10GigE, Color/Mono | $2,699.00 | 8 in stock | View |
| LS-MV-170C/M-10G | 1.8 MP, 10GigE, Color/Mono | $2,699.00 | 9 in stock | View |
| LS-MV-280C/M-10G | 2.8 MP, 10GigE, Color/Mono | $2,699.00 | 7 in stock | View |
| LS-MV-402C/M | 4.2 MP, 10GigE, Color/Mono | $2,699.00 | 10 in stock | View |
| LS-MV-503C/M-10G | 5.6 MP, 10GigE, Color/Mono | $2,699.00 | 6 in stock | View |
| LS-MV-507C/M-10G | 5.0 MP, 10GigE, Color/Mono | $2,699.00 | 4 in stock | View |
| LS-MV-903C/M-10G | 9.1 MP, 10GigE, Color/Mono | $2,949.00 | 7 in stock | View |
| LS-MV-1205C/M-10G | 13 MP, 10GigE, Color/Mono | $3,829.00 | 8 in stock | View |
| LS-MV-1606C/M-10G | 17 MP, 10GigE, Color/Mono | $3,829.00 | 5 in stock | View |
| LS-MV-1207C/M-10G | 13 MP, 10GigE, Color/Mono | $3,829.00 | 7 in stock | View |
| LS-MV-1803C/M-10G | 18 MP, 10GigE, Color/Mono | $5,519.00 | 6 in stock | View |
| LS-MV-2500C/M-10G | 26 MP, 10GigE, Color/Mono | $5,519.00 | 8 in stock | View |
| LS-MV-2600C-10G | 26 MP, 10GigE, Color | $5,519.00 | 4 in stock | View |
| LS-MV-2501C/M-10G | 26 MP, 10GigE, Color/Mono | $5,519.00 | 5 in stock | View |
| LS-MV-3100C/M-10G | 31 MP, 10GigE, Color/Mono | $7,559.00 | 8 in stock | View |
| LS-MV-6500C/M-10G | 65 MP, 10GigE, Color/Mono | $8,849.00 | 5 in stock | View |
| LS-MV-10000C/M-10G | 104 MP, 10GigE, Color/Mono | $10,959.00 | 7 in stock | View |
