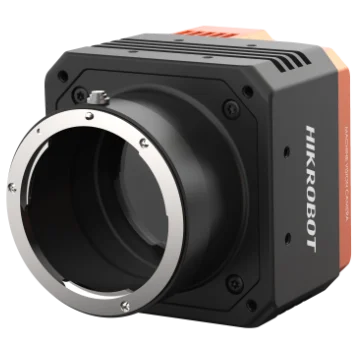

Hikrobot MV-HY6500-00W-BFN 65 MP CMOS 10GigE industrial area scan camera
Model MV-HY6500-00W-BFN
Hikrobot MV-HY6500-00W-BFN 65 MP CMOS 10GigE industrial area scan camera. 65 MP resolution, 3.2 µm pixel size Automatic or manual adjustment of exposure time, gamma correction, LUT and more
Features
- 65 MP resolution, 3.2 µm pixel size
- Automatic or manual adjustment of exposure time, gamma correction, LUT and more
- 10GigE interface, compatible with Gigabit Ethernet: up to 100 m transmission without a repeater
- Flexible mounting: holes on the top, bottom and front panels to choose from as needed
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
Specifications
| Model | MV-HY6500-00W-BFN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3265 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 29.9 mm × 22.4 mm |
| Resolution | 9344 × 7000 |
| Max. frame rate | 17.2 fps @9344 × 7000 Bayer RG 8 |
| Dynamic range | 78 dB |
| SNR | 40 dB |
| Gain | 1.25x ~ 6x |
| Exposure time | 18 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 9 ~ 24 VDC |
| Power consumption | 11.6 W @12 VDC |
| Lens mount | F-mount, flange back length 46.5 mm |
| Dimension | 74 mm × 74 mm × 84.8 mm |
| Weight | <600 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.94 kg |
