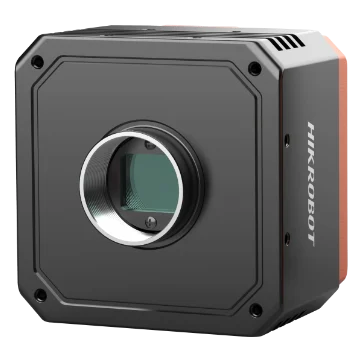

Hikrobot MV-HY2500-00W-BCN 25 MP 1.1" CMOS 10GigE industrial area scan camera
Model MV-HY2500-00W-BCN
Hikrobot MV-HY2500-00W-BCN 25 MP 1.1" CMOS 10GigE industrial area scan camera. 25 MP resolution, 2.5 µm pixel size C-mount lens compatible to reduce optical system cost
Features
- 25 MP resolution, 2.5 µm pixel size
- C-mount lens compatible to reduce optical system cost
- 10GigE interface, compatible with Gigabit Ethernet, transmission distance up to 100 m
- Flexible mounting: holes on the top, bottom and front panels to choose from as needed
Specifications
| Model | MV-HY2500-00W-BCN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 41.5 fps @5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0x ~ 5.0x |
| Exposure time | Ultra-short exposure time: 3 μs to 8 μs; Standard exposure time: 9 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer BG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Decimation | Supports 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2), 1× RS-232 |
| Power supply | 9 ~ 24 VDC |
| Power consumption | 10 W@12 VDC |
| Lens mount | C-Mount, Flange focal distance 17.52 mm |
| Dimension | 74 mm × 74 mm × 78.8 mm |
| Weight | C-mount camera: approx. 590 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows XP/7/10 32/64-bit and Linux 32/64-bit |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.93 kg |
