Area scan cameras

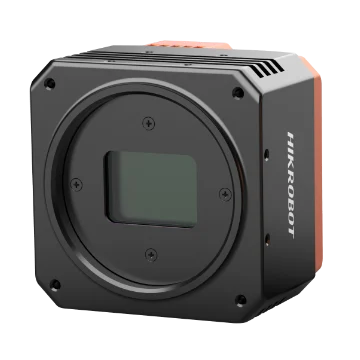

Hikrobot MVGL-AC409G-68TC 12 MP 1.1" CMOS 10GigE industrial area scan camera
Model MVGL-AC409G-68TC
Hikrobot MVGL-AC409G-68TC 12 MP 1.1" CMOS 10GigE industrial area scan camera. 12 MP resolution, 3.45 µm pixel size Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
Features
- 12 MP resolution, 3.45 µm pixel size
- Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
- 10GigE interface, compatible with Gigabit Ethernet, transmission distance up to 100 m
- Flexible mounting: holes on the top, bottom and front panels to choose from as needed
Specifications
| Model | MVGL-AC409G-68TC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX253 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 68.3 fps @4096 × 3000 Mono 8 |
| Dynamic range | 71.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB ~ 18 dB |
| Exposure time | Ultra-short exposure mode: 2 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8, Bayer RG 8; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 9 ~ 24 VDC |
| Power consumption | 10.1 W@24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 74 mm × 74 mm × 72.4 mm |
| Weight | Approx. 550 g (1.2 lb) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.87 kg |
