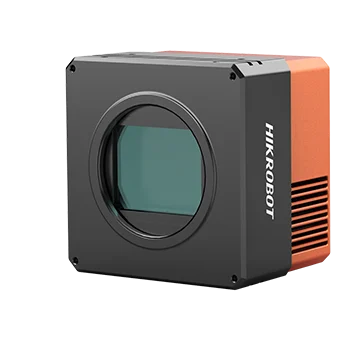

Hikrobot MV-CH1510-10FC-M72-TF 150 MP 10GigE area scan camera, IMX411, Color, M72 mount, With TEC, Fiber port
Model MV-CH1510-10FC-M72-TF
Hikrobot MV-CH1510-10FC-M72-TF 150 MP 10GigE area scan camera, IMX411, Color, M72 mount, With TEC, Fiber port. ISP functions including binning, multi-set LSC cycling and per-pixel correction 10GigE over Fiber interface: up to 300 m with optical modules
Datasheet (PDF, Chinese) - MV-CH1510-10FC-M72-TFUser manual (PDF, Chinese) - MV-CH1510-10FC-M72-TFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH1510-10FC-M72-TF
Features
- ISP functions including binning, multi-set LSC cycling and per-pixel correction
- 10GigE over Fiber interface: up to 300 m with optical modules
- TEC cooling greatly lowers sensor temperature to preserve image quality in long exposures
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software platforms
Specifications
| Model | MV-CH1510-10FC-M72-TF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX411 |
| Pixel size | 3.76 μm × 3.76 μm |
| Sensor size | 66.7 mm |
| Resolution | 14208 × 10640 |
| Max. frame rate | 6.2 fps @14208 × 10640 Bayer RG 8 |
| Dynamic range | 78.8 dB |
| SNR | 45 dB |
| Gain | 0 ~ 36 dB |
| Exposure time | 15 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12/16; Bayer RG 8/10/10Packed/12/12Packed/16; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | 10 Gigabit Ethernet(10000Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1. |
| Power supply | 24 VDC |
| Power consumption | 13.2 W @ 24 VDC (non-TEC mode); 51.22 W @ 24 VDC (TEC mode) |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 120 mm × 120 mm × 89 mm |
| Weight | Approx. 2.5 kg (5.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 3.60 kg |
