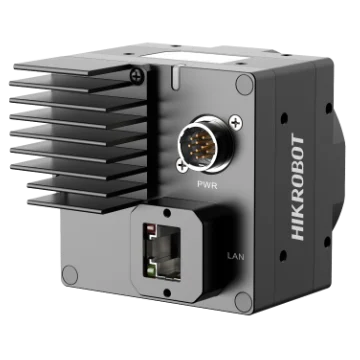

Hikrobot MV-CH470-10TC-M58S-NN 47 MP 10GigE area scan camera, IMX492, Color, M58 mount, Fanless

Name: Hikrobot MV-CH470-10TC-M58S-NN 47 MP 10GigE area scan camera, IMX492, Color, M58 mount, Fanless
Brand: Hikrobot
SKU: MV-CH470-10TC-M58S-NN

Model MV-CH470-10TC-M58S-NN

Hikrobot MV-CH470-10TC-M58S-NN 47 MP 10GigE area scan camera, IMX492, Color, M58 mount, Fanless. Resolution 8192 × 5556, pixel size 2.315 μm Rolling-shutter CMOS with high dynamic range, good SNR and excellent image quality

Datasheet (PDF, Chinese) - MV-CH470-10TC-M58S-NN User manual (PDF, Chinese) - MV-CH470-10TC-M58S-NN CAD: 3D STEP + 2D DXF (ZIP) - MV-CH470-10TC-M58S-NN

Features

Resolution 8192 × 5556, pixel size 2.315 μm
Rolling-shutter CMOS with high dynamic range, good SNR and excellent image quality
10GigE interface, compatible with Gigabit Ethernet
Compliant with the GigE Vision V2.0 protocol and GenICam standard

Specifications

Model	MV-CH470-10TC-M58S-NN
Brand	Hikrobot
Sensor type	CMOS, rolling shutter
Sensor model	Sony IMX492
Pixel size	2.315 μm × 2.315 μm
Sensor size	1.4”
Resolution	8192 × 5556
Max. frame rate	24 fps @8192 × 5556 Bayer RG 8
Dynamic range	66.6 dB
SNR	41.9 dB
Gain	0 dB ~ 15 dB
Exposure time	8 μs ~ 10 sec
Exposure mode	Auto exposure supported, Manual exposure, One-shot exposure mode, , Global Reset and Rolling supported
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; RGB 8/BGR 8; YUV422Packed/YUV422_YUYV_Packed
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Data interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply	9 ~ 24 VDC
Power consumption	9.8 W@12 VDC
Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	60 mm × 60 mm × 56.5 mm
Weight	Approx. 308.4 g
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.53 kg
