Bar lights · 11 models · from $69.00

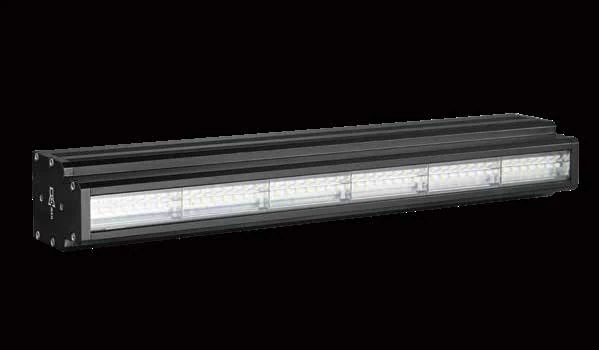

LED bar light
The LED bar light is a range of 11 bar lights from LumaSpec Vision, from $69.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 72.5 x 14 mm, 220 x 14 mm, 295 x 14 mm, 370 x 14 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
Features
- Quick and efficient customization
- Uniform, low heat illumination
- Widely used in microscope
- Long working distance
- Compact design
- High density and high brightness LED array
- Bar lighting can be customized other size and color
Typical uses
- Measurement inspection of mechanical components
- Inspection of transparent film
- Microscope illumination
All 11 models in the LED bar light
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-C75X-A | 72.5 x 14 mm | 3.9 W | $69.00 | 10 in stock | View | |
| LS-C75X-P | 72.5 x 14 mm | 3.9 W | $69.00 | 16 in stock | View | |
| LS-C75X | 3.9 W | $79.00 | 13 in stock | View | ||
| LS-C145X | 8.4 W | $119.00 | 17 in stock | View | ||
| LS-C220X-A | 220 x 14 mm | 11.6 W | $149.00 | 17 in stock | View | |
| LS-C220X-P | 220 x 14 mm | 11.6 W | $149.00 | 14 in stock | View | |
| LS-C220X | 11.6 W | $159.00 | 12 in stock | View | ||
| LS-C295X-A | 295 x 14 mm | 16.6 W | $189.00 | 11 in stock | View | |
| LS-C295X-P | 295 x 14 mm | 16.6 W | $189.00 | 17 in stock | View | |
| LS-C370X-A | 370 x 14 mm | 20.6 W | $229.00 | 14 in stock | View | |
| LS-C370X-P | 370 x 14 mm | 20.6 W | $229.00 | 17 in stock | View |
