Bar lights · 9 models · from $79.00

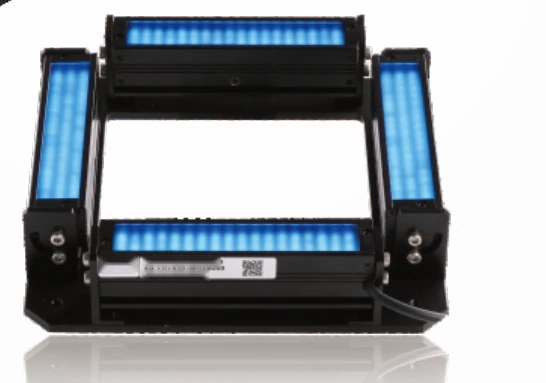

Combined bar light (2BRM)
The Combined bar light (2BRM) is a range of 9 bar lights from LumaSpec Vision, from $79.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 90 mm, 96 x 30 mm, 120 mm, 130 x 60 mm, 150 mm, 175 x 125 mm, 210 mm, 270 x 240 mm, 400 x 255 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Strip / combination |
| Voltage | 24 V |
Features
- Four sides combined bar light, each side can illuminate with independent control
- Light angle adjustable to the workpiece needs
- Various applications
- Customizable: Quantity of bar lights, Length & width, Shape, Colour & colour temperature, Combined light, Cable length, Multi-area control, Installation method
- UV & IR versions can be customized as required
Typical uses
- PCB inspection
- IC element inspection
- Tin soldering inspection
- Mark position location
- Packing bar code illumination
- Spherical workpiece illumination
All 9 models in the Combined bar light (2BRM)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2BRM160 | 90 mm | 8.8 W | $79.00 | 16 in stock | View | |
| LS-2BRM96 | 96 x 30 mm | 2.8 W | $89.00 | 8 in stock | View | |
| LS-2BRM130 | 130 x 60 mm | 5.6 W | $99.00 | 16 in stock | View | |
| LS-2BRM200 | 120 mm | 11.6 W | $99.00 | 18 in stock | View | |
| LS-2BRM230 | 150 mm | 14.4 W | $119.00 | 15 in stock | View | |
| LS-2BRM285235 | 175 x 125 mm | 28.8 W | $129.00 | 9 in stock | View | |
| LS-2BRM290 | 210 mm | 20.4 W | $149.00 | 12 in stock | View | |
| LS-2BRM400360 | 270 x 240 mm | 24.8 W | $179.00 | 15 in stock | View | |
| LS-2BRM532382 | 400 x 255 mm | 38.4 W | $249.00 | 14 in stock | View |
